| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,496 pcs
|
2496 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

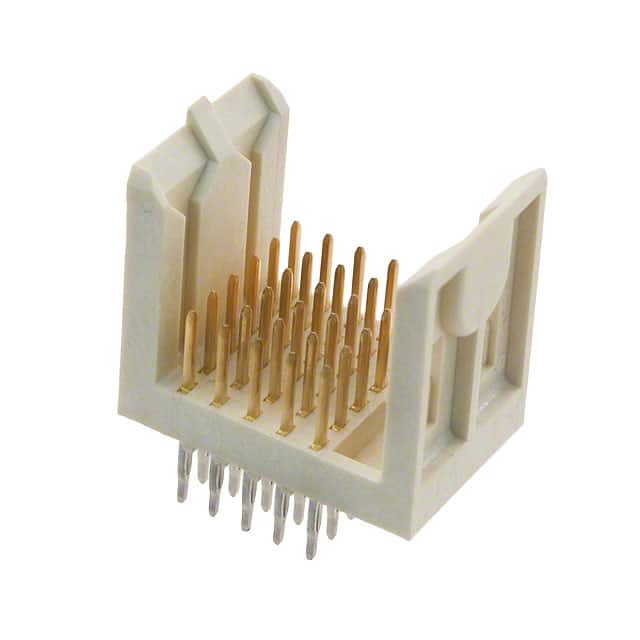

The Amphenol ICC 89006-110LF is a specialized backplane header connector designed for high-density interconnect applications. It features 30 male pin contacts arranged in 5 rows with a 2.00mm pitch, providing reliable signal and power connections.
This connector utilizes through hole press-fit termination, ensuring secure mounting on PCBs without soldering. The contacts are finished with 30µin gold plating for high conductivity and corrosion resistance. The housing is natural white in color.
Commonly used in backplane and midplane systems, this header is suitable for data centers, telecommunications, and industrial equipment requiring robust connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.16 | $5.16 |
| 10+ | $4.38 | $4.38 |
| 48+ | $3.93 | $3.93 |
| 96+ | $3.74 | $3.74 |
| 144+ | $3.63 | $3.63 |
| 288+ | $3.46 | $3.46 |
| 528+ | $3.31 | $3.31 |
| 1,008+ | $3.17 | $3.17 |
| 2,544+ | $2.97 | $2.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions, all loaded.
2.00mm (0.079 inches).
Through hole press-fit.
Press-fit.
Gold with 30µin (0.76µm) thickness.
5 rows.
