| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,086 pcs
|
1086 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| SVHC Present | |
| Supplier Device Package | |
| Type | |
| Voltage |
The 88E1548-A1-BAM2C000 is a quad-port Ethernet transceiver IC from Marvell Technology Group Ltd. It integrates four drivers and receivers capable of 10/100/1000Mbps data rates.
The device supports both full and half duplex operation and is compliant with IEEE 1149.1 (JTAG) and IEEE 802.3 standards. It operates from three separate supply voltage ranges: 1.71V~1.89V, 2.38V~2.63V, and 3.13V~3.47V.
Key electrical characteristics include a receiver hysteresis of 360 mV, ensuring robust signal reception. The operating temperature range is 0°C to 70°C.

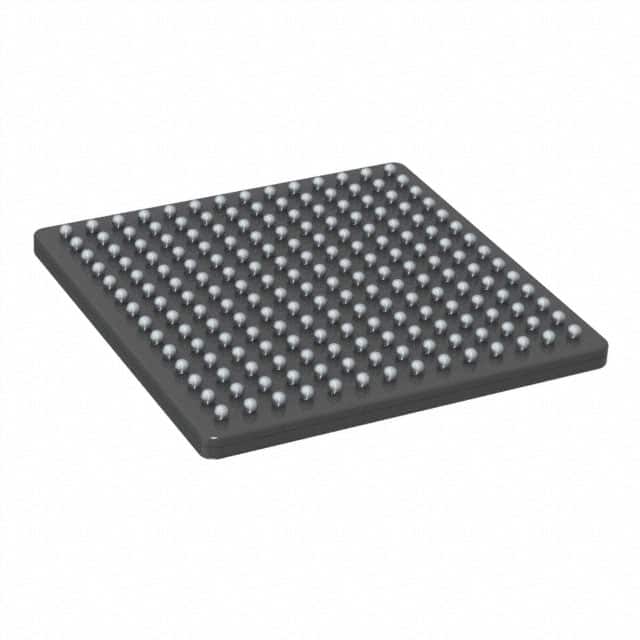

The 88E1548-A1-BAM2C000 is housed in a 196-LBGA (plastic ball grid array) package with a supplier device package of 196-TFBGA measuring 15x15 mm. It is designed for surface mount assembly.
1.71V~1.89V, 2.38V~2.63V, and 3.13V~3.47V
196-LBGA; supplier device package 196-TFBGA (15x15 mm)
0°C to 70°C
RoHS3 Compliant (unverified, low confidence)
10 Mbps, 100 Mbps, and 1 Gbps
Yes, it supports both full and half duplex operation.
360 mV
