Mfr Part #:

88E1512-A0-NNP2C000

The Marvell 88E1512-A0-NNP2C000 is a transceiver IC supporting multiple data rates and duplex modes. It operates within a specified voltage range and temperature.

✓ Total Stock: 29,127 pcs

88E1512-A0-NNP2C000 Available from 6 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	15,907 pcs On Request	15907 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	11,100 pcs On Request	11100 pcs	On Request	1	On Request	On Request	19+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,900 pcs On Request	1900 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	120 pcs On Request	120 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

88E1512-A0-NNP2C000 Description

Short technical summary and product information.

The Marvell 88E1512-A0-NNP2C000 is a transceiver integrated circuit designed for various communication applications. It supports multiple data rates, including 10Mbps, 100Mbps, and 1Gbps, and operates in both full and half duplex modes.

This transceiver features 4 drivers and 4 receivers, adhering to protocols such as IEEE 802.3 and IEEE 1588. It is designed to operate within a voltage range of 1.71V to 3.14V and has an operating temperature range of 0°C to 70°C.

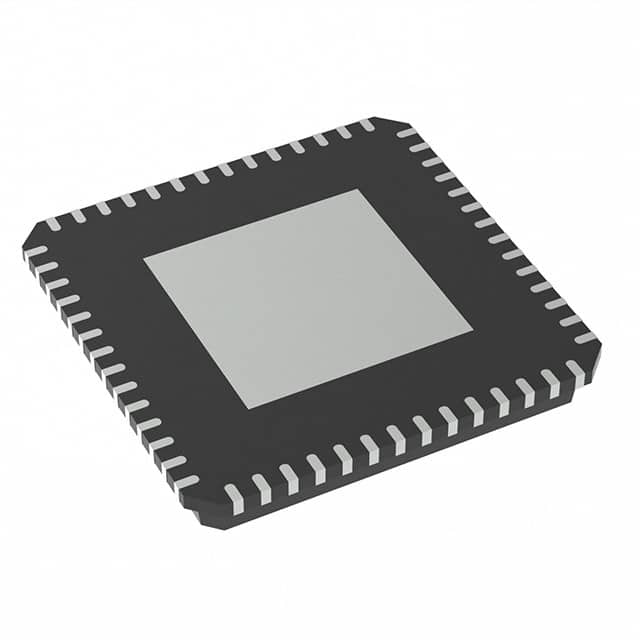

The component is housed in a 56-VFQFN Exposed Pad package, with a supplier device package of 56-QFN (8x8). It is designed for surface mount installation.

Environmental compliance includes RoHS3 compliance and an MSL rating of 1.

88E1512-A0-NNP2C000 Quick Information

Product Type: Transceiver

Series: Alaska

Canonical Name: 88E1512-A0-NNP2C000 Transceiver

Subcategory: Drivers, Receivers, Transceivers

88E1512-A0-NNP2C000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

88E1512-A0-NNP2C000 Features

Supports IEEE 802.3 and IEEE 1588 protocols.
Operates at 10Mbps, 100Mbps, and 1Gbps.
Features 4 drivers and 4 receivers.
Supports full and half duplex modes.
Surface mountable 56-QFN package.

88E1512-A0-NNP2C000 Applications

Ideal for Ethernet networking.
Suitable for time-sensitive applications.
Supports multi-rate data transmission.
Used in interface circuitry.

88E1512-A0-NNP2C000 FAQs

7 frequently asked questions generated from this part’s specifications.

What operating voltage range does the 88E1512-A0-NNP2C000 support?

The operating voltage range is 1.71V to 3.14V.

What is the operating temperature for this transceiver?

The operating temperature is 0°C to 70°C (TA).

What package type is the 88E1512-A0-NNP2C000 supplied in?

It is supplied in a 56-VFQFN Exposed Pad package, with a supplier device package of 56-QFN (8x8).

What protocols does the 88E1512-A0-NNP2C000 support?

It supports IEEE 802.3 and IEEE 1588 protocols.

What data rates are supported by this transceiver?

It supports data rates of 10Mbps, 100Mbps, and 1Gbps.

Does the 88E1512-A0-NNP2C000 support full and half duplex?

Yes, it supports both full and half duplex modes.

What is the RoHS status of the 88E1512-A0-NNP2C000?

It is RoHS3 Compliant.

Category	Drivers, Receivers, Transceivers
Manufacturer Name	Marvell Technology Group Ltd
Data Rate	10Mbps, 100Mbps, 1Gbps
Duplex	Full, Half
Mounting Type	Surface Mount
Number of Drivers	4/4
Operating Temperature	0°C ~ 70°C (TA)
Protocol	IEEE 802.3, IEEE 1588
Supplier Device Package	56-QFN (8x8)
Type	Transceiver
Voltage	1.71V, 2.38V, 3.14V
