| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,128 pcs
|
1128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

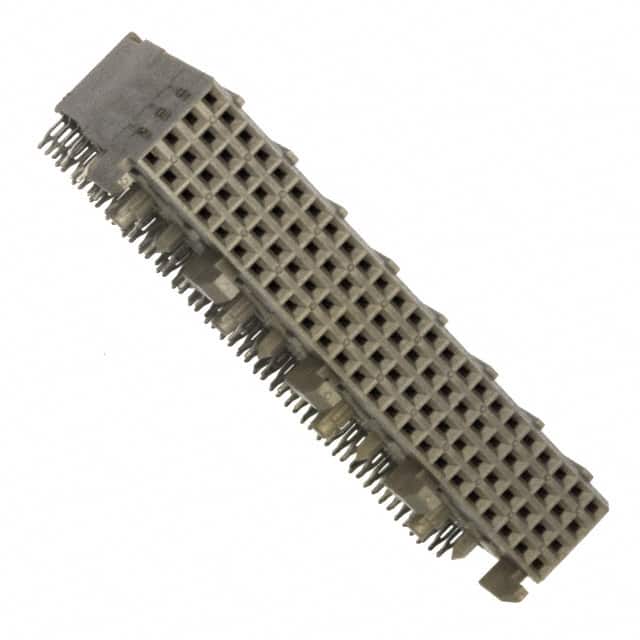

The 88947-102LF is a specialized backplane connector manufactured by Amphenol ICC. It is a receptacle with female sockets designed for board edge mounting. The connector has 96 positions arranged in 4 rows, all loaded, with a 2.00mm pitch.
Termination is press-fit, eliminating the need for soldering and allowing for a reliable connection in high-density backplane environments. The contacts are finished with 30µin gold, ensuring excellent conductivity and corrosion resistance.
The mounting type is board edge, through hole, right angle, facilitating a space-saving installation on the edge of a PCB. The connector includes features such as a board guide and spacer for accurate alignment and secure fit. The housing is natural in color.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.18 | $15.18 |
| 10+ | $10.27 | $10.27 |
| 12+ | $12.73 | $12.73 |
| 36+ | $11.78 | $11.78 |
| 40+ | $10.09 | $10.09 |
| 60+ | $11.37 | $11.37 |
| 70+ | $9.92 | $9.92 |
| 108+ | $10.90 | $10.90 |
| 150+ | $9.74 | $9.74 |
| 252+ | $10.27 | $10.27 |
| 504+ | $9.78 | $9.78 |
| 680+ | $8.86 | $8.86 |
| 1,008+ | $9.32 | $9.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions.
2.00mm (0.079").
Board edge, through hole, right angle.
4 rows.
Press-fit termination.
Gold with 30.0µin (0.76µm) thickness.
Board guide and spacer.
