| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
672 pcs
|
672 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

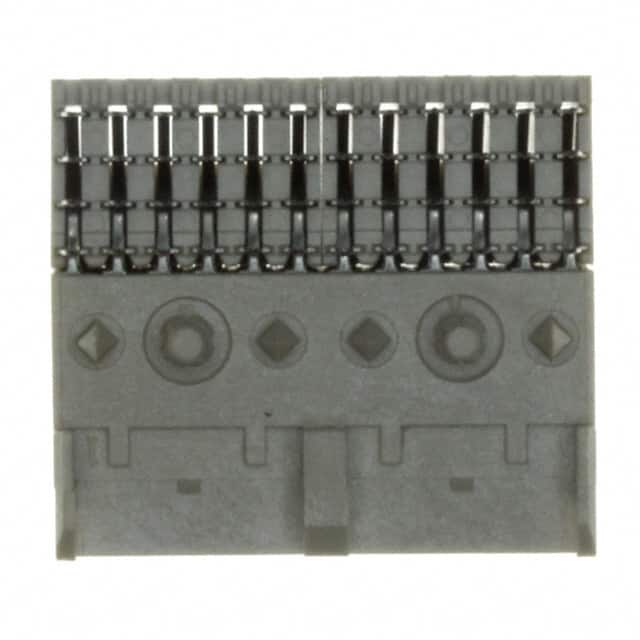

The 88946-102LF is a specialized backplane connector manufactured by Amphenol ICC. It is a receptacle with 48 female socket positions, all loaded, arranged in 4 rows with a 2.00mm pitch. The connector is designed for board edge, through hole, right angle mounting and uses press-fit termination for reliable solderless connections.
Contact surfaces are finished with 30.0µin (0.76µm) of gold, ensuring good conductivity and corrosion resistance. The housing is natural in color and includes features such as a board guide and spacer to aid in alignment and installation.
This connector is suitable for backplane and midplane applications where high-density, reliable interconnections are required. The press-fit termination eliminates the need for soldering, reducing assembly time and improving manufacturing yield.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.58 | $8.58 |
| 15+ | $5.69 | $5.69 |
| 24+ | $6.86 | $6.86 |
| 48+ | $6.53 | $6.53 |
| 72+ | $6.34 | $6.34 |
| 75+ | $5.60 | $5.60 |
| 120+ | $6.12 | $6.12 |
| 150+ | $5.50 | $5.50 |
| 255+ | $5.40 | $5.40 |
| 264+ | $5.79 | $5.79 |
| 504+ | $5.76 | $5.76 |
| 960+ | $4.90 | $4.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 88946-102LF has 48 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
It uses board edge, through hole, right angle mounting.
The termination style is press-fit.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
