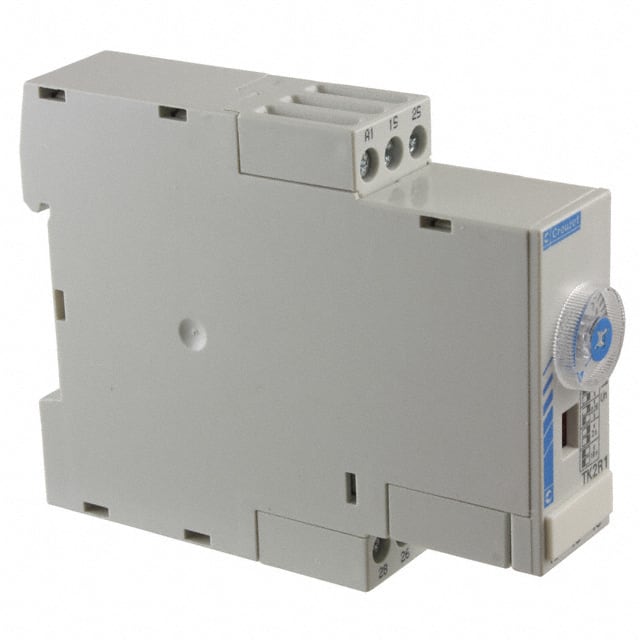

88865265 Crouzet 88865265 is an off-delay timer relay from the Chronos 2 series. It features DPDT contacts rated at 8A, operates on 24 VDC or 24-240 VAC, and offers timing ranges from 0.6s to 160s.
Mfr Part #:

88865265

Available from 1 distributors
Mfr Name: Crouzet
Crouzet
Crouzet 88865265 is an off-delay timer relay from the Chronos 2 series. It features DPDT contacts rated at 8A, operates on 24 VDC or 24-240 VAC, and offers timing ranges from 0.6s to 160s.
✓ Total Stock: 1 pcs

88865265 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

88865265 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Contact Rating @ Voltage
Delay Time
Function
Mounting Type
Relay Type
Termination Style
Timing Adjustment Method
Timing Initiate Method
Voltage
View Similar Products (0)

88865265 Description

Short technical summary and product information.

The Crouzet 88865265 is an off-delay timer relay from the Chronos 2 TK2R1 series. It is designed for DIN rail mounting and features a hand dial for timing adjustment. The relay provides two timed changeover contacts (DPDT) rated at 8 A at 250 VAC. It operates on a supply voltage of 24 VDC or 24-240 VAC. The timing range is selectable from 0.6 s, 2.5 s, 20 s, and 160 s, with a repetition accuracy of ±0.5% and temperature drift of ±0.05%/°C. The relay has a minimum pulse duration of 30 ms (unloaded) and 100 ms (under load), and a maximum reset time of 100 ms. It is immune to micro power cuts greater than 10 ms. Termination is via screw terminals. The device complies with IEC/EN 61812-1 standards. Note: This product is obsolete and has been replaced by Crouzet 88865266.

88865265 Quick Information

Product Type: Time Delay Relay
Series: TK2R1
Canonical Name: Crouzet Chronos 2 TK2R1 Off-Delay Timer Relay, 24 VDC/24-240 VAC, DPDT, 8A, 0.6s-160s, DIN Rail
Subcategory: Off-Delay Timer

88865265 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

88865265 Features

  • Off-delay timing function with hand dial adjustment.
  • DPDT contacts rated at 8 A at 250 VAC.
  • Four selectable timing ranges from 0.6 s to 160 s.
  • DIN rail mountable with screw terminals.
  • Supply voltage 24 VDC or 24-240 VAC.

88865265 Applications

  • Used for off-delay timing in industrial control panels.
  • Suitable for motor start/stop sequencing.
  • Ideal for conveyor belt delay applications.
  • Can be used in HVAC system timing control.

88865265 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the 88865265?

24 VDC or 24-240 VAC.

What is the mounting type of this timer relay?

DIN Rail (22.5 mm).

Is the 88865265 RoHS compliant?

RoHS3 Compliant (unverified).

What timing ranges are available?

0.6 s, 2.5 s, 20 s, and 160 s.

What is the contact rating of the relay?

8 A at 250 VAC.

What function does this timer relay perform?

Off-Delay.

What is the circuit configuration?

DPDT (2 Form C).
