| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,728 pcs
|
2728 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Adhesive Strength of Termination | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Conflict Minerals | |
| Dielectric Strength | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Q Factor | |
| Rated Voltage | |
| Resistance to Solder Heat | |
| SVHC Present | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Vibration Resistance | |
| Voltage | |
| Width |

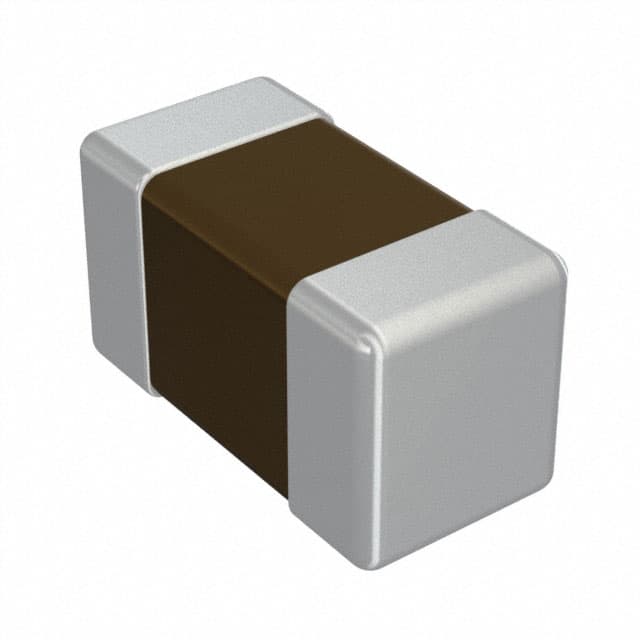

The Würth Elektronik 885012005025 is a multilayer ceramic capacitor (MLCC) with a capacitance of 10 pF and a rated voltage of 16 V DC. It features a C0G (NP0) Class I ceramic dielectric, offering a temperature coefficient of ±30 ppm/°C maximum and an operating temperature range of -55°C to +125°C. The capacitor has a tolerance of ±5% and a minimum Q-factor of 600, ensuring stable performance in high-frequency applications. It is housed in a 0402 (1005 metric) surface-mount package with a maximum thickness of 0.55 mm. The component is RoHS3 and REACH compliant, with an MSL (Moisture Sensitivity Level) of 1. Designed for general purpose use, it is suitable for various electronic circuits requiring reliable capacitance stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.02 | $0.02 |
| 50+ | $0.01 | $0.01 |
| 100+ | $0.01 | $0.01 |
| 500+ | $0.01 | $0.01 |
| 1,000+ | $0.01 | $0.01 |
| 2,500+ | $0.01 | $0.01 |
| 5,000+ | $0.01 | $0.01 |
| 10,000+ | $0.00 | $0.00 |
| 20,000+ | $0.00 | $0.00 |
| 30,000+ | $0.00 | $0.00 |
| 50,000+ | $0.00 | $0.00 |
| 70,000+ | $0.00 | $0.00 |
| 100,000+ | $0.00 | $0.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 pF.
16 V DC.
±30 ppm/°C maximum, C0G (NP0) Class I.
±5%.
0402 (1005 metric).
-55°C to +125°C.
600.
