| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| CSA | |
| For Use With | |
| Fuse Size | |
| Fuseholder Type | |
| Mounting Type | |
| Number of Poles | |
| Panel Cutout | |
| SEMKO | |
| SEV | |
| Standard Package Quantity | |
| Termination Style | |
| UL | |
| VDE |

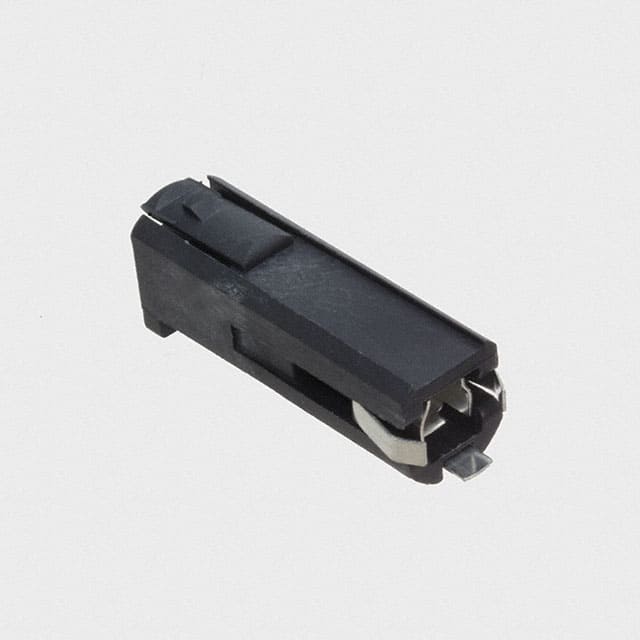

The Schurter 8843.0902 is a 2-pole shock safe fuse drawer designed for use with the 8843 series power entry modules. This accessory accepts standard 5x20mm fuses and provides a safe, enclosed fuseholder solution for AC power entry applications.
The fuse drawer features quick connect terminals sized 0.187" x 0.032" (4.8mm x 0.8mm) and is mounted via screw mount from the front of the panel. The panel cutout required is 21.08mm x 45.24mm. The shock safe design meets IEC 65/VDE 0860 standards, ensuring operator protection during fuse replacement.
This component is recognized by UL (10A/250V, File E93617), certified by CSA (10A/250V, File LR38456), and approved by VDE (6A/250V, File 19397), SEMKO (10A/250V), and SEV (10A/250V). It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.10 | $4.10 |
| 10+ | $3.48 | $3.48 |
| 25+ | $3.26 | $3.26 |
| 50+ | $3.11 | $3.11 |
| 100+ | $2.96 | $2.96 |
| 300+ | $2.74 | $2.74 |
| 500+ | $2.64 | $2.64 |
| 1,000+ | $2.52 | $2.52 |
| 2,500+ | $2.36 | $2.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 5mm x 20mm fuses.
It has 2 poles.
Quick connect terminals sized 0.187" x 0.032" (4.8mm x 0.8mm).
Screw mount from the front of the panel.
21.08mm x 45.24mm (0.830" x 1.781").
Yes, it is a shock safe type according to IEC 65/VDE 0860.
UL recognized (10A/250V File E93617), CSA certified (10A/250V File LR38456), VDE approved (6A/250V File 19397), SEMKO approved (10A/250V), and SEV approved (10A/250V).
