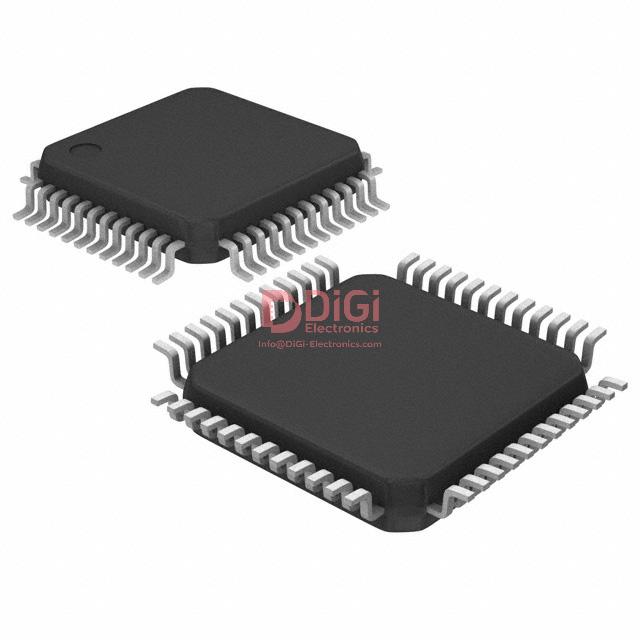

Renesas 87972DYILF is a Clock Multiplier, Zero Delay Buffer with integrated PLL, supporting LVCMOS, LVTTL, and Crystal inputs. It operates at 125 MHz with a 3.135V to 3.465V supply.

✓ Total Stock: 19,772 pcs

87972DYILF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	19,772 pcs On Request	19772 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

87972DYILF Description

Short technical summary and product information.

The Renesas 87972DYILF is a Clock Multiplier and Zero Delay Buffer designed for precision timing applications. It features an integrated Phase-Locked Loop (PLL) with bypass capability, enabling flexible clock generation and distribution. The device accepts LVCMOS, LVTTL, or Crystal inputs and provides LVCMOS and LVTTL outputs with a 3:12 input-to-output ratio.

Operating at a maximum frequency of 125 MHz, the 87972DYILF requires a supply voltage between 3.135V and 3.465V. It is housed in a 52-LQFP package with a 10x10 mm body (Supplier Device Package: 52-TQFP) and supports surface mount mounting. The device is rated for an industrial temperature range of -40°C to 85°C.

This component is suitable for clock multiplication and zero delay buffering in systems requiring low skew and high-frequency accuracy. The PLL with bypass mode allows for direct input pass-through when needed, offering design flexibility.

87972DYILF Quick Information

Product Type: Clock Multiplier, Zero Delay Buffer

Canonical Name: Renesas 87972DYILF Clock Multiplier, Zero Delay Buffer

Subcategory: Clock Generators, PLLs, Frequency Synthesizers

87972DYILF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

87972DYILF Features

Integrated PLL with bypass mode.
Supports LVCMOS, LVTTL, Crystal inputs.
Maximum frequency of 125 MHz.
Supply voltage range 3.135V to 3.465V.
Industrial temperature range -40°C to 85°C.

87972DYILF Applications

Clock multiplication in digital systems.
Zero delay buffering for timing distribution.
PLL-based frequency synthesis applications.
Low skew clock generation for PCBs.

87972DYILF FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the 87972DYILF?

The operating voltage range is 3.135V to 3.465V.

What package does the 87972DYILF come in?

It comes in a 52-LQFP package (Supplier Device Package: 52-TQFP 10x10mm).

What is the operating temperature range of the 87972DYILF?

The operating temperature range is -40°C to 85°C.

Is the 87972DYILF RoHS compliant?

Yes, it is RoHS3 compliant.

What type of inputs does the 87972DYILF support?

It supports LVCMOS, LVTTL, and Crystal inputs.

What is the maximum frequency of the 87972DYILF?

The maximum frequency is 125 MHz.

Does the 87972DYILF have a PLL?

Yes, it has a PLL with bypass capability.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	Renesas
Differential	No/No
Divider	Yes/No
Frequency	125 MHz
Input	LVCMOS, LVTTL, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature	-40°C ~ 85°C
Output	LVCMOS, LVTTL
PLL	Yes with Bypass
Ratio	3:12
SVHC Present	Not Present
Supplier Device Package	52-TQFP (10x10)
Type	Clock Multiplier, Zero Delay Buffer
Voltage	3.135V ~ 3.465V
