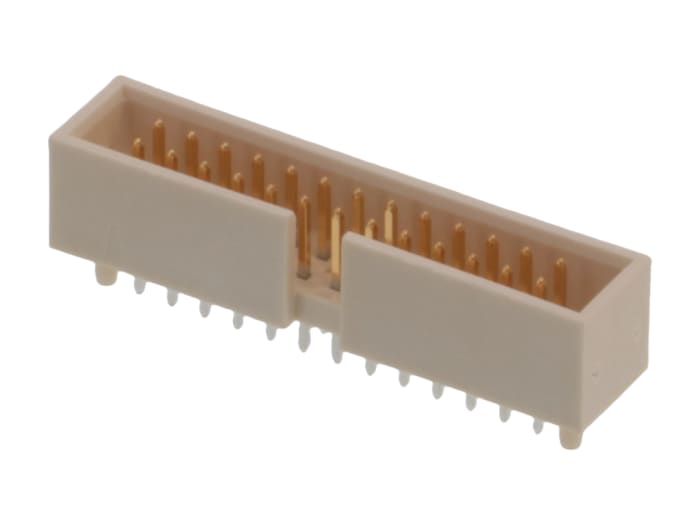

87834-2611 This Molex 87834 Series PCB header features 26 contacts with a 2.54mm pitch and vertical through-hole mounting. It is designed for wire-to-board applications.
Mfr Part #:

87834-2611

Available from 1 distributors
Mfr Name: Molex
Molex
This Molex 87834 Series PCB header features 26 contacts with a 2.54mm pitch and vertical through-hole mounting. It is designed for wire-to-board applications.
✓ Total Stock: 22 pcs
$ Price Range: $1.00

87834-2611 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

87834-2611 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector System
Contact Material
Contact Plating
Current Rating
Housing Material
Mounting Type
Number of Contacts
Number of Rows
Orientation
Pitch
Termination Style
View Similar Products (0)

87834-2611 Description

Short technical summary and product information.

The Molex 87834-2611 is a vertical through-hole PCB header from the 87834 series. It offers 26 contacts arranged in 2 rows with a standard 2.54mm pitch, suitable for wire-to-board connections. The header is shrouded and features male contacts with gold plating for reliable connectivity.



Constructed with a durable nylon housing, this component is rated for a current of 2.5A. It operates within a temperature range of -55°C to 120°C. The through-hole termination type ensures a secure connection to the PCB, with a tail pin length of 3.43mm. The header meets UL E29179 standards.



This component is designed for applications requiring robust and reliable PCB connections. Its specifications make it suitable for various industrial and electronic equipment designs where a secure wire-to-board interface is essential.

87834-2611 Quick Information

Product Type: PCB Header
Series: 87834
Canonical Name: Molex 87834 Series Vertical Through Hole PCB Header
Subcategory: Rectangular Connectors

87834-2611 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

87834-2611 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

87834-2611 Features

  • 26 contacts in 2 rows
  • 2.54mm pitch for wire-to-board
  • Vertical through-hole mounting
  • Gold-plated male contacts
  • 2.5A current rating

87834-2611 Applications

  • Ideal for PCB interconnects
  • Suitable for wire-to-board systems
  • Used in electronic assemblies
  • Reliable signal connections

87834-2611 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

2.54 mm

What is the current rating per contact?

2.5 A

What is the mounting type?

Through hole

How many positions does the header have?

26

What is the operating temperature range?

-55°C to 120°C

Is the connector shrouded?

Yes

What is the housing material?

Nylon
