| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
268 pcs
|
268 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Conductor Material | |
| Inductance | |
| Insulation Diameter | |
| Insulation Material | |
| Operating Temperature | |
| Shield Type | |
| Voltage Rating | |
| Weight |

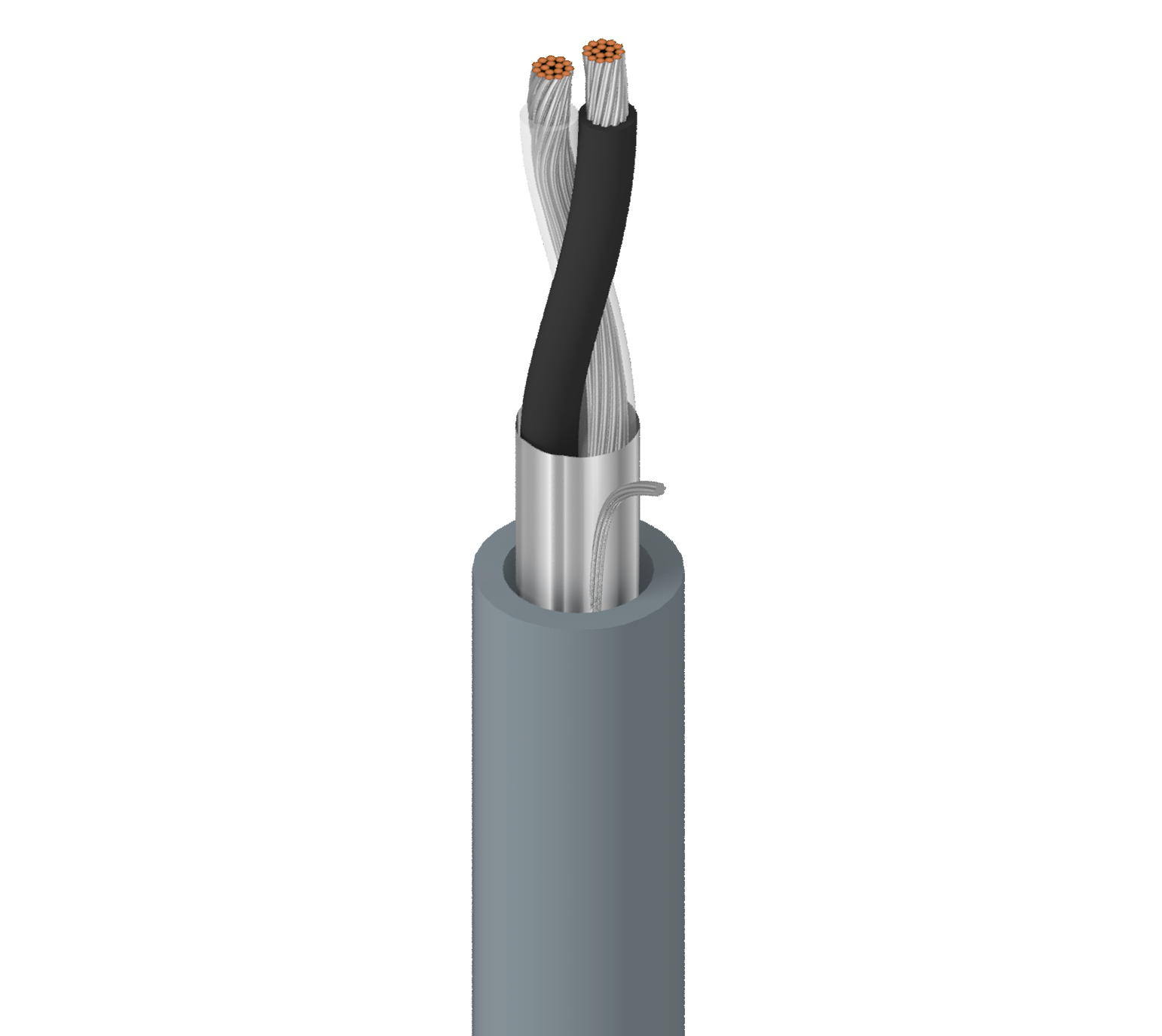

The Belden 8762 is an electronic cable designed for low voltage analog signals, digital control, line level audio, computer communication, and panel wiring. It features two 20 AWG tinned copper conductors with polyethylene insulation.
The cable is constructed with an overall Beldfoil shield providing 100% coverage and a drain wire. The outer jacket is made of durable PVC, offering protection and compliance with CM, UL 1685, and IEC 60332-1-2 standards.
With a characteristic impedance of 56 Ohms and a voltage rating of 300V, the 8762 cable is suitable for indoor use and operates within a temperature range of -20°C to +60°C. Its overall diameter is 0.204 inches.
This cable meets various compliance standards including NEC/UL Article 800, AWM 2092, CEC/C(UL) CM, and European directives like RoHS 2 and WEEE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Belden 8762 cable has 2 conductors, each 20 AWG with 7x28 stranding of tinned copper.
The insulation material is Polyethylene with a nominal thickness of 0.43 mm and a diameter of 1.8 mm.
The Belden 8762 cable features an overall Beldfoil shield made of Bi-Laminate (Alum+Poly) with 100% coverage and a tinned copper drain wire.
The jacket material is Polyvinyl Chloride with a nominal thickness of 0.71 mm, and the overall cable diameter is 5.18 mm.
The characteristic impedance of the Belden 8762 cable is 56 Ohms.
The maximum current rating is 8 Amps per conductor at 30°C.
The operating temperature range for the Belden 8762 cable is -20°C to +60°C.
The Belden 8762 cable meets NEC/UL Article 800, CM, AWM 2092, CEC/C(UL) CM, CPR Euroclass Eca, CPR UKCA Class Eca, and European directives including CE Mark, RoHS 2, and WEEE.
