| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
377 pcs
|
377 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

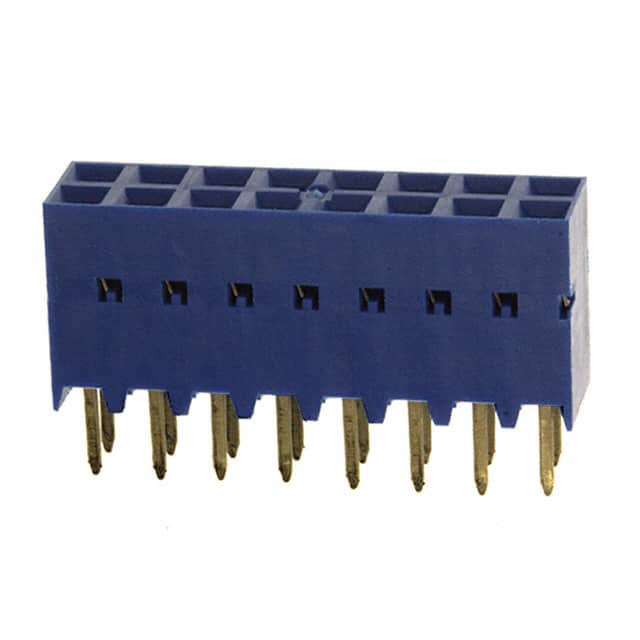

The 87606-308LF is a 16 position, 2 row rectangular receptacle connector from Amphenol ICC. It features push-pull fastening for secure board-to-board connections. Contacts are tin plated female sockets with a contact finish thickness of 30.0µin (0.76µm).
The connector has a 2.54mm (0.100") pitch and 2.54mm row spacing. It mounts via through hole termination with solder tails of 2.90mm length. The insulation is blue with a height of 8.51mm (0.335") and is rated UL94 V-0 for flammability.
All 16 positions are loaded. This component is designed for board to board applications where a reliable, polarized connection is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.80 | $2.80 |
| 29+ | $2.21 | $2.21 |
| 116+ | $2.00 | $2.00 |
| 522+ | $1.80 | $1.80 |
| 1,015+ | $1.72 | $1.72 |
| 5,017+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 87606-308LF has 16 positions, all loaded.
The pitch is 2.54mm (0.100").
The mounting type is through hole.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
The insulation is blue with a height of 8.51mm (0.335").
The row spacing is 2.54mm (0.100").
