| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Positions Loaded | |
| Row Spacing | |
| Style | |
| Termination |

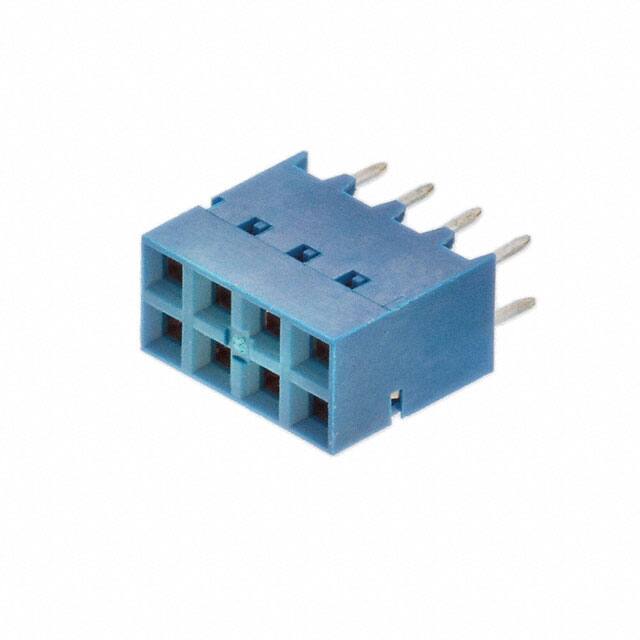

This 8-position, 2-row board-to-board receptacle features push-pull fastening for secure mating. The 2.54mm pitch and matching row spacing allow for standard header compatibility. Termination is through-hole solder, providing reliable PCB attachment. Contacts are finished with tin at 30.0µin (0.76µm) thickness. The insulator is blue, rated UL94 V-0 for flammability, with an insulation height of 8.51mm. Designed for rectangular connector applications, this receptacle is suitable for various electronic assemblies requiring a compact, low-profile interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 10+ | $1.93 | $1.93 |
| 45+ | $1.68 | $1.68 |
| 100+ | $1.64 | $1.64 |
| 270+ | $1.47 | $1.47 |
| 500+ | $1.47 | $1.47 |
| 540+ | $1.27 | $1.27 |
| 1,000+ | $1.40 | $1.40 |
| 5,000+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions, all loaded.
2.54mm (0.100")
Through hole
Female socket
2
Push-pull
Tin with 30.0µin thickness
