| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,906 pcs
|
3906 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Termination |

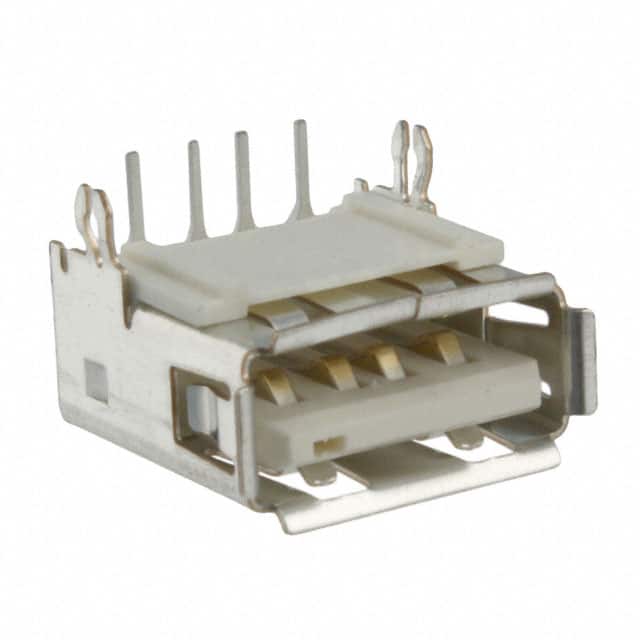

The Amphenol ICC 87520-0010BLF is a USB-A (USB TYPE-A) receptacle connector designed for USB 2.0 applications. It features 4 contacts and a single port, with a through hole, right angle mounting style for horizontal placement on a PCB. The termination is solder, and the connector is unshielded, making it suitable for cost-sensitive designs where EMI shielding is not critical. A board lock feature ensures secure retention during soldering and vibration.
Electrically, the connector is rated for a current of 3A per contact, supporting typical USB power delivery needs. Mechanically, it is rated for 1500 mating cycles, providing reliable durability for consumer and industrial use. The operating temperature range spans from -55°C to 85°C, allowing use in a wide variety of environments.
Compliance information includes RoHS3 Compliant, MSL Level 1 (Unlimited), and REACH Unaffected, though these values are unverified and should be confirmed with the manufacturer. The part is commonly used in computer peripherals, industrial control panels, and embedded systems where a standard USB Type-A interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.26 | $1.26 |
| 10+ | $1.07 | $1.07 |
| 42+ | $0.97 | $0.97 |
| 84+ | $0.92 | $0.92 |
| 126+ | $0.90 | $0.90 |
| 252+ | $0.85 | $0.85 |
| 504+ | $0.81 | $0.81 |
| 1,008+ | $0.77 | $0.77 |
| 2,520+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB-A (USB TYPE-A) Receptacle.
4 contacts.
3A.
Through Hole, Right Angle with horizontal mounting feature.
-55°C to 85°C.
USB 2.0.
1500 cycles.
