| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,182 pcs
|
14182 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Frequency | |
| Input Signal | |
| Main Purpose | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Signal | |
| Supply Voltage |

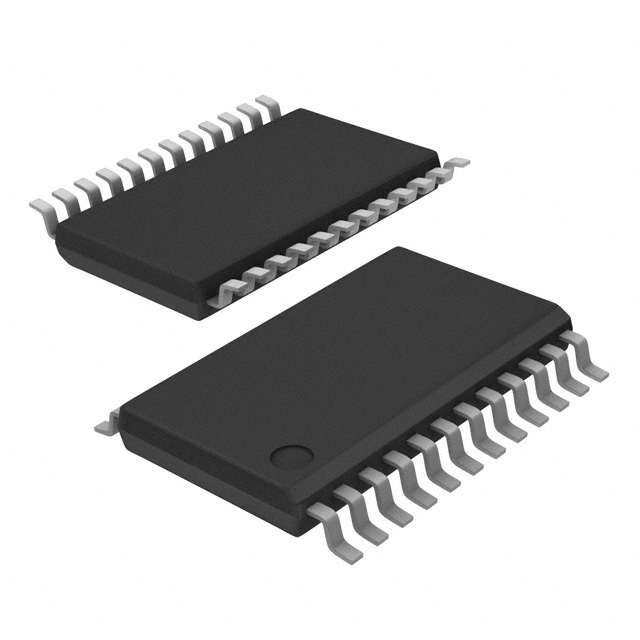

The 8741004AGLFT from Renesas Electronics America Inc is an application-specific integrated circuit (IC) designed for clock and timing functions, particularly for PCI Express (PCIe) interfaces. This device operates at a maximum frequency of 160MHz and requires a supply voltage between 3.135V and 3.465V.
It supports various input signal types including HCSL, LVDS, LVHSTL, LVPECL, and SSTL, with LVDS as the output signal type. The IC features a 1:4 input to output ratio and supports differential input and output signals. It is housed in a 24-TSSOP package and is designed for surface mount applications.
The operating temperature range for this component is 0°C to 70°C. Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited) moisture sensitivity level, and REACH Unaffected status. This IC is suitable for applications requiring precise clock generation and distribution within the specified parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 160MHz.
The supply voltage range is 3.135V to 3.465V.
The operating temperature range is 0°C to 70°C.
It is available in a 24-TSSOP package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 (Unlimited).
The REACH status is REACH Unaffected.
