| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,182 pcs
|
14182 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Plating | |
| Input | |
| Main Purpose | |
| Mounting Type | |
| Number of Circuits | |
| Number of Outputs | |
| Operating Temperature | |
| Output Type | |
| PLL | |
| Power Dissipation (Max) | |
| Thickness | |
| Width |

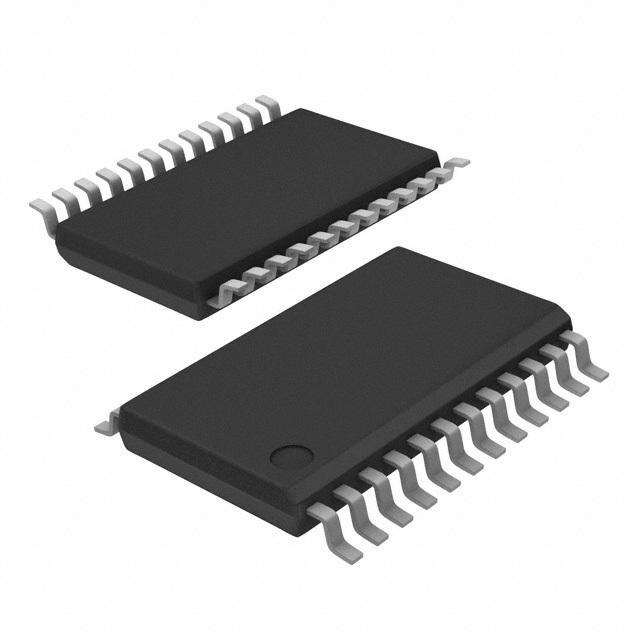

The 8741004AGLF is an Application Specific Timer IC manufactured by Integrated Device Technology. Designed for PCI Express (PCIe) applications, this device functions as a PLL-based clock driver.
It operates with a supply voltage range of 3.135V to 3.465V, with a nominal operating voltage of 3.3V and a nominal supply current of 45mA. The device supports a maximum power dissipation of 563.7mW. It features 3-state output characteristics and LVDS input/output.
With a minimum operating frequency of 98 MHz, the 8741004AGLF offers a 1:4 input-to-output ratio and has 4 outputs. The operating temperature range is from 0°C to 70°C. The component is supplied in a 24-pin TSSOP package suitable for surface mounting.
This part is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited). It was published in 2006.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is 3.3V, with a minimum of 3.135V and a maximum of 3.465V.
The 8741004AGLF is supplied in a TSSOP package.
The operating temperature range is 0°C to 70°C.
The RoHS status is RoHS3 Compliant.
