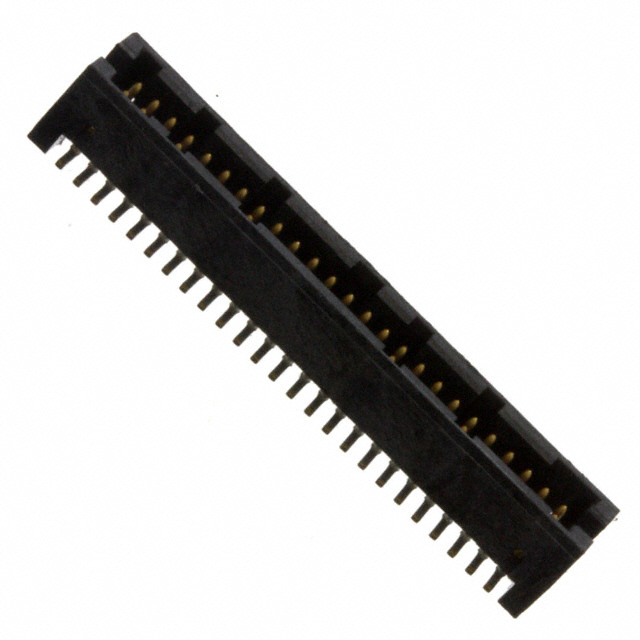

87409-125 50 position, 2 row, 1.27mm pitch surface mount header with male pins and shrouded design. Suitable for board-to-board applications.
Mfr Part #:

87409-125

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
50 position, 2 row, 1.27mm pitch surface mount header with male pins and shrouded design. Suitable for board-to-board applications.
✓ Total Stock: 176 pcs
$ Price Range: $2.89

87409-125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
176 pcs
On Request
176 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

87409-125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

87409-125 Description

Short technical summary and product information.

The Amphenol ICC 87409-125 is a 50 position, 2 row, 1.27mm pitch surface mount header designed for board-to-board interconnections. It features male pins with a tin-lead contact finish of 30µin thickness, ensuring reliable electrical connections. The header is shrouded with a 4-wall design and push-pull fastening, providing protection and secure mating. A board guide feature aids in alignment during assembly.



The header is rated for 1A current and operates over a temperature range of -55°C to 130°C. The insulation is made of thermoplastic, glass filled material with a UL94 V-0 flammability rating, offering good thermal and mechanical properties. The natural color insulation height is 5.74mm, and the contact length is 3.30mm.



This component is surface mount with solder termination, making it suitable for automated assembly processes. It is RoHS3 compliant (unverified) and has an MSL of 1 Unlimited. The header is ideal for high-density PCB designs in industrial, telecommunications, and commercial electronics.

87409-125 Quick Information

Product Type: Header, Male Pins
Canonical Name: 50 Position 2 Row 1.27mm Pitch Surface Mount Header, Male Pins, Shrouded
Subcategory: Shrouded Header

87409-125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

87409-125 Estimated Pricing

Qty Low High
2,295+ $2.89 $2.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

87409-125 Features

  • 50 position, 2 row, 1.27mm pitch header.
  • Surface mount with solder termination.
  • Shrouded 4-wall design for protection.
  • Board guide feature for alignment.
  • Rated for 1A current and -55 to 130°C.

87409-125 Applications

  • Used in board-to-board interconnects.
  • Suitable for high-density PCB designs.
  • Ideal for industrial and commercial electronics.
  • Applicable in telecommunications equipment.

87409-125 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

50 positions.

What is the pitch?

1.27mm.

What is the current rating?

1A.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 130°C.

What is the contact finish?

Tin-Lead with 30µin thickness.

What is the insulation material and flammability rating?

Thermoplastic, glass filled with UL94 V-0 rating.
