| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

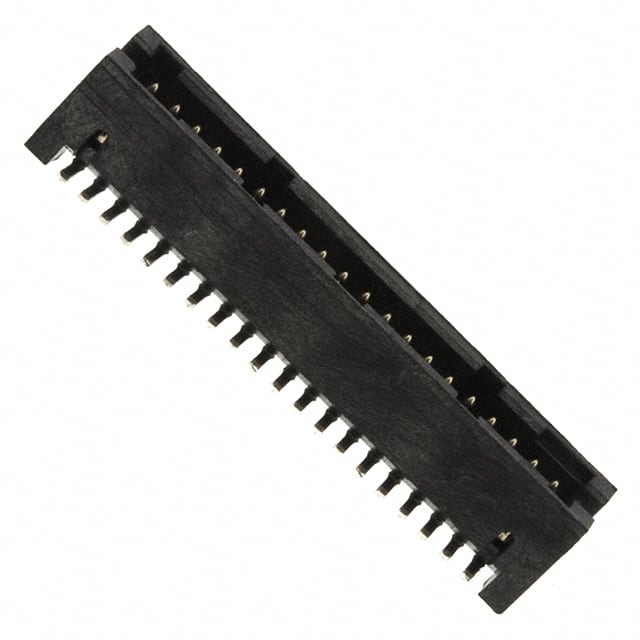

The Amphenol ICC 87409-120LF is a 40-position, 2-row header connector designed for board-to-board applications. It features a 1.27mm (0.050") pitch and row spacing, making it suitable for high-density interconnects. The connector is surface mount (SMD) with solder termination, and the contacts are male pins with a square shape and tin finish (30.0µin thickness). The insulation is made of thermoplastic, glass filled, with a natural color, and has a flammability rating of UL94 V-0. The operating temperature range is -55°C to 130°C, and the current rating is 1A DC. The shrouded 4-wall design provides protection and alignment, and the push-pull fastening type ensures secure mating. A board guide feature aids in placement. This connector is RoHS3 compliant and REACH unaffected (unverified). It is commonly used in applications requiring reliable board-to-board connections in compact spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.31 | $3.31 |
| 10+ | $3.03 | $3.03 |
| 25+ | $2.94 | $2.94 |
| 100+ | $2.71 | $2.71 |
| 250+ | $2.49 | $2.49 |
| 567+ | $2.40 | $2.40 |
| 2,835+ | $2.36 | $2.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions.
1.27mm (0.050").
1A DC.
Surface mount (SMD).
2 rows.
-55°C to 130°C.
UL94 V-0.
