| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
613 pcs
|
613 pcs | On Request | 1 | On Request | On Request | 1745+ | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

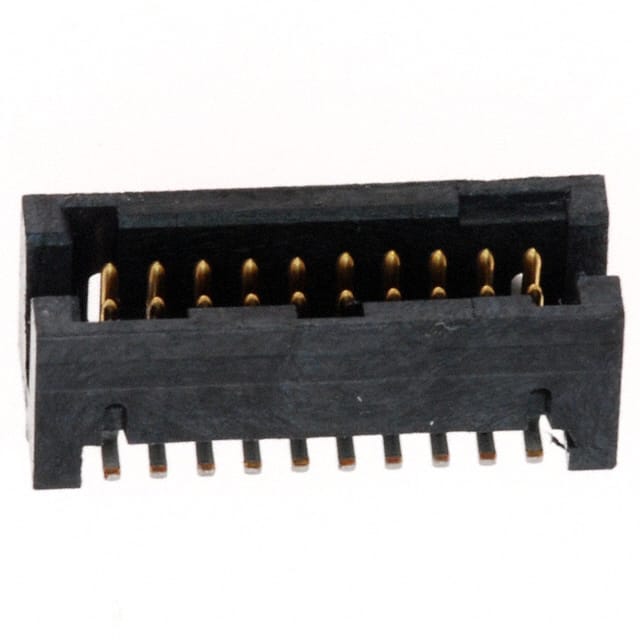

The 87409-110LF is a 20-position, 2-row, 1.27mm pitch shrouded header manufactured by Amphenol ICC. It is designed for surface mount (SMD) termination with solder finish. The connector features a 4-wall shrouded design with push-pull fastening, providing robust mating guidance and protection.
Key specifications include a current rating of 1A DC, operating temperature range of -55°C to +130°C, and a UL94 V-0 flammability rating for the glass-filled thermoplastic insulator. The contact finish is tin with a thickness of 30.0µin (0.76µm), and the contact length is 3.30mm. The insulation height is 5.74mm, and the housing is natural in color.
This header is intended for board-to-board applications and includes a board guide feature for alignment during assembly. The 1.27mm pitch enables high-density interconnections while maintaining reliable electrical performance. The product is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 38+ | $1.98 | $1.98 |
| 114+ | $1.83 | $1.83 |
| 532+ | $1.64 | $1.64 |
| 1,026+ | $1.57 | $1.57 |
| 5,016+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
1.27mm (0.050")
1A DC
Surface mount (SMD)
-55°C to 130°C
Tin, 30.0µin (0.76µm)
Thermoplastic, glass filled, rated UL94 V-0.
