| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

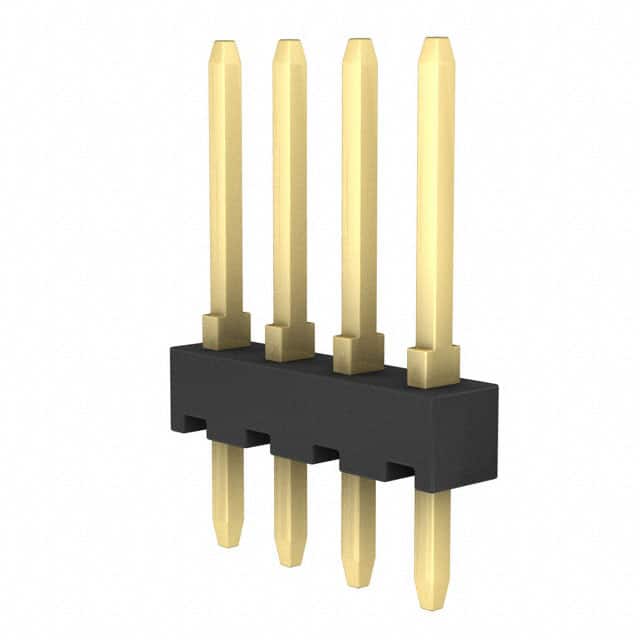

The TE Connectivity 87224-4 is a 4-position unshrouded header designed for board-to-board or cable applications. It features a single row of square male pins on a 2.54mm (0.100") pitch, making it compatible with standard pin receptacles.
Key specifications include a current rating of 3A, an operating temperature range of -65°C to 105°C, and a UL94 V-0 flammability rating for the black thermoplastic insulator. The contacts are made of phosphor bronze with a 15.0µin (0.38µm) gold finish, ensuring reliable low-level signal performance.
The header is through-hole mounted with solder termination. The push-pull fastening type allows easy mating and unmating. Overall contact length is 0.533" (13.55mm), with a contact length of 0.318" (8.08mm) and insulation height of 0.090" (2.29mm).
This part is commonly used in general-purpose interconnection requiring a compact, low-profile header with standard 2.54mm spacing. RoHS3 and REACH compliant statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.12 | $2.12 |
| 10+ | $1.80 | $1.80 |
| 100+ | $1.53 | $1.53 |
| 500+ | $1.36 | $1.36 |
| 1,000+ | $1.30 | $1.30 |
| 5,000+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions loaded in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3A.
It is a through-hole mounting header with solder termination.
Contacts are phosphor bronze with a 15.0µin (0.38µm) gold finish.
The operating temperature range is -65°C to 105°C.
It is an unshrouded header with push-pull fastening.
