872-5167 This RS PRO UL3266 series hook up wire features a 0.13 mm² cross-sectional area and 26 AWG gauge. It is rated for 300V and operates up to 125°C.
Mfr Part #:

872-5167

Available from 1 distributors
Mfr Name: RS COMPONENTS
RS COMPONENTS
This RS PRO UL3266 series hook up wire features a 0.13 mm² cross-sectional area and 26 AWG gauge. It is rated for 300V and operates up to 125°C.
✓ Total Stock: 5 pcs
$ Price Range: $1.20

872-5167 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

872-5167 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Length
Conductor Material
Failure Rate
Voltage
View Similar Products (0)

872-5167 Description

Short technical summary and product information.

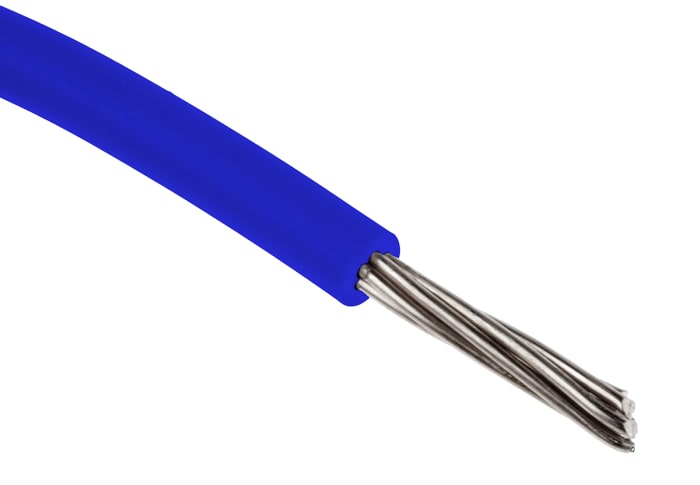

The RS PRO UL3266 series hook up wire is designed for internal wiring of electrical and electronic equipment. It has a cross-sectional area of 0.13 mm² and a 26 AWG gauge, with 7 strands of tinned copper conductor.



This wire operates at a voltage of 300V and can withstand temperatures from 0°C to a maximum of 125°C. The jacket is made of flame-retardant polyethylene, ensuring safety in various applications. It meets UL 758 and UL 1581 standards and has a VW-1 flammability rating.



The wire comes in a blue jacket color and is supplied in a 100-meter reel. Its outside diameter is 1.3 mm. This product is suitable for applications requiring reliable internal wiring with good thermal and flame resistance.

872-5167 Quick Information

Product Type: Hook Up Wire
Series: UL3266
Canonical Name: RS PRO UL3266 Series Blue 0.13 mm² Hook Up Wire, 26 AWG
Subcategory: Single Core Cable

872-5167 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

872-5167 Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

872-5167 Features

  • 0.13 mm² cross-sectional area, 26 AWG.
  • Rated for 300V operation.
  • Maximum operating temperature of 125°C.
  • Flame retardant polyethylene jacket.
  • UL 758 and UL 1581 compliant.

872-5167 Applications

  • Ideal for internal wiring of electronics.
  • Suitable for general electrical applications.
  • Use in temperature-sensitive environments.
  • Meets safety standards for equipment.

872-5167 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 872-5167 hook-up wire?

The wire is rated for 300 V operating voltage.

What is the operating temperature range of this wire?

The operating temperature range is 0 °C to 125 °C.

What is the conductor material and size?

The conductor is 26 AWG tinned copper with a cross-sectional area of 0.13 mm² and 7 strands.

What is the jacket material and outside diameter?

The jacket is made of polyethylene and the outside diameter is 1.3 mm.

What standards does this wire comply with?

It complies with UL 758 and UL 1581 standards.

What is the flammability rating of this wire?

The wire has a VW-1 flammability rating.

What length is the wire supplied in?

The wire is supplied in a 100 m reel.
