| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

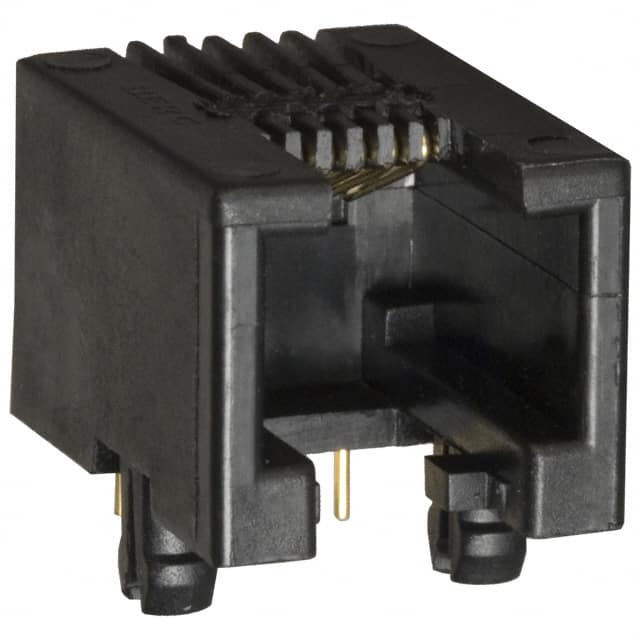

The 87180-066LF is a modular jack connector from Amphenol ICC, featuring 6 positions and 6 contacts (6p6c), compatible with RJ11, RJ12, RJ14, and RJ25 standards. It has a single port and one row of contacts. The connector is rated for Category 3 applications, suitable for voice frequency and low-speed data transmission.
Key mechanical specifications include through hole mounting with a right angle orientation (90°), making it suitable for compact PCB layouts where space is limited at the board edge. The connector is unshielded, which is appropriate for applications not requiring EMI protection. A board lock feature ensures secure attachment to the PCB during soldering.
Contact reliability is ensured with phosphor bronze contacts and a gold finish, providing corrosion resistance and reliable electrical connections over repeated mating cycles. The termination type is solder, standard for through hole components. The tab faces downward, which may influence cable plug insertion direction. This connector does not include LED indicators and is designed for basic telecommunication and networking functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.93 | $1.93 |
| 43+ | $1.74 | $1.74 |
| 86+ | $1.66 | $1.66 |
| 129+ | $1.61 | $1.61 |
| 258+ | $1.54 | $1.54 |
| 516+ | $1.46 | $1.46 |
| 1,032+ | $1.39 | $1.39 |
| 2,537+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions and 6 contacts (6p6c), compatible with RJ11, RJ12, RJ14, and RJ25.
Through Hole mounting.
Right angle (90°) orientation.
No, it is unshielded.
Solder termination.
Phosphor Bronze contacts with Gold finish.
Yes, it features a board lock for secure mounting.
