| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,700 pcs
|
10700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

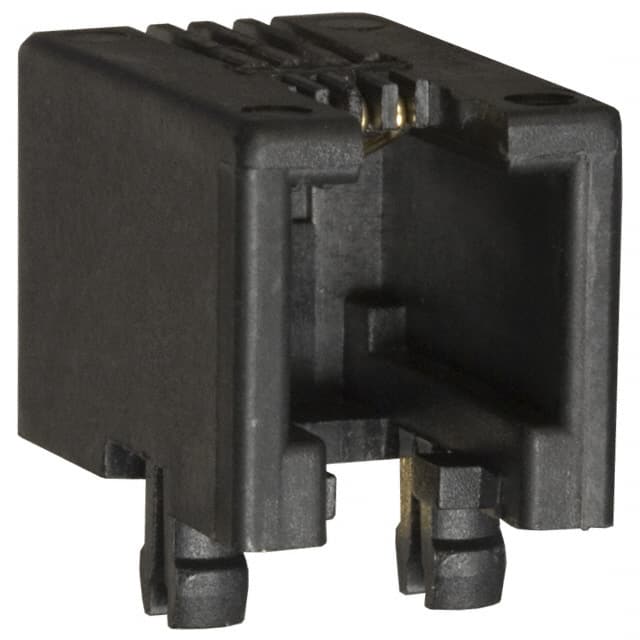

The 87180-044LF is a modular connector jack manufactured by Amphenol ICC. It is a 4 position, 4 contact (4P4C) unshielded jack with a right angle (90°) orientation. The connector is designed for through hole mounting with solder termination, making it suitable for PCB applications where a low-profile side entry is required. The jack features a board lock for secure attachment to the circuit board. Contact finish is gold over phosphor bronze, providing reliable electrical performance and corrosion resistance. The tab direction is down. This jack is rated for Cat3 applications, indicating it is suitable for voice and low-speed data networks up to 10 Mbps. The part does not include an LED indicator. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.52 | $1.52 |
| 25+ | $1.42 | $1.42 |
| 50+ | $1.36 | $1.36 |
| 100+ | $1.29 | $1.29 |
| 250+ | $1.21 | $1.21 |
| 500+ | $1.15 | $1.15 |
| 1,000+ | $1.10 | $1.10 |
| 2,500+ | $1.03 | $1.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The jack has 4 positions and 4 contacts (4P4C).
It is designed for through hole mounting.
The connector has a right angle (90°) orientation.
The jack is unshielded.
The contact finish is gold.
The Cat3 rating indicates suitability for voice and low-speed data networks up to 10 Mbps.
