| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination |

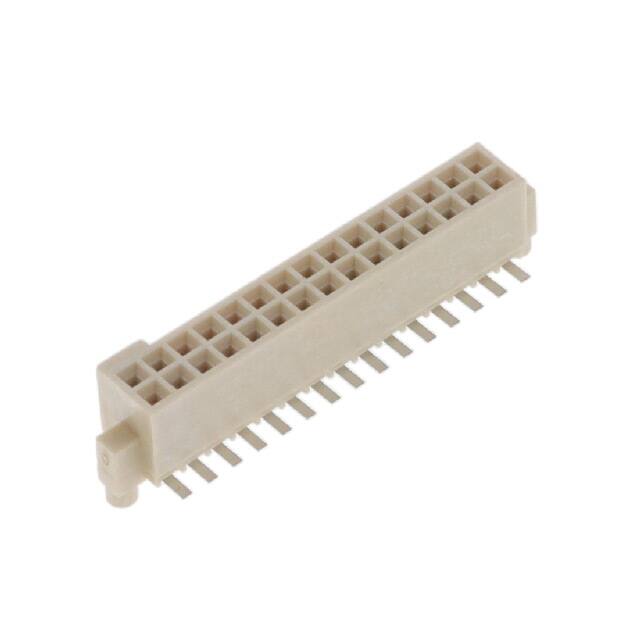

The 87024-615TRLF is a 30-position receptacle connector from Amphenol ICC, designed for board-to-board applications. It features a 1.27mm (0.050") pitch and 2 rows of female socket contacts. The connector is surface mount with solder termination and a push-pull fastening type. It includes board guide and pick-and-place features for automated assembly. The insulation is natural color with a height of 4.75mm. The contact finish is tin with a thickness of 30.0µin (0.76µm). The material flammability rating is UL94 V-0. This connector is suitable for compact electronic devices requiring reliable board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.88 | $5.88 |
| 10+ | $4.99 | $4.99 |
| 100+ | $4.24 | $4.24 |
| 500+ | $3.79 | $3.79 |
| 1,000+ | $3.61 | $3.61 |
| 1,500+ | $3.51 | $3.51 |
| 2,500+ | $3.38 | $3.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
1.27mm (0.050").
Surface mount.
Tin with 30.0µin (0.76µm) thickness.
2 rows.
Push-pull.
