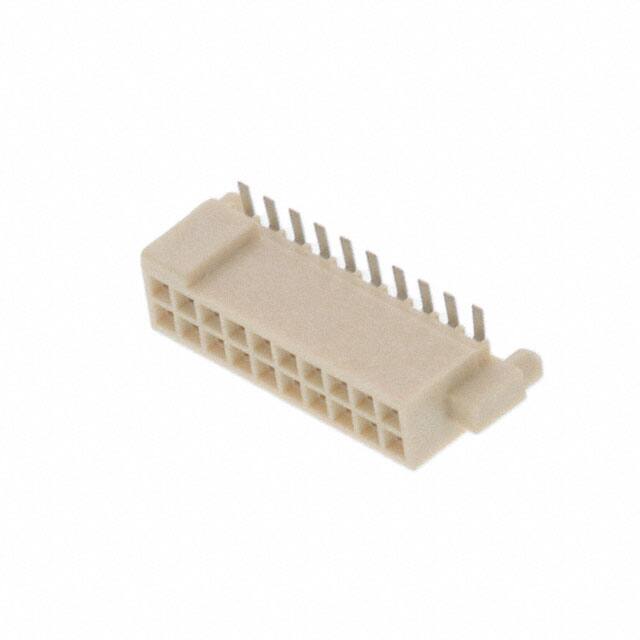

87024-610TRLF The 87024-610TRLF is a 20-position, 1.27mm pitch surface mount receptacle from Amphenol ICC. It features a push-pull fastening type and board guide for pick and place assembly.
Mfr Part #:

87024-610TRLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
The 87024-610TRLF is a 20-position, 1.27mm pitch surface mount receptacle from Amphenol ICC. It features a push-pull fastening type and board guide for pick and place assembly.
✓ Total Stock: 182 pcs
$ Price Range: $1.15 - $2.04

87024-610TRLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
182 pcs
182 pcs On Request 1 On Request On Request On Request On Request On Request

87024-610TRLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style

87024-610TRLF Description

Short technical summary and product information.

The Amphenol ICC 87024-610TRLF is a 20-position, dual-row receptacle designed for board-to-board applications. It features a 1.27mm pitch and row spacing, making it suitable for high-density interconnects. The surface mount termination with solder tails enables automated assembly, and the push-pull fastening type ensures secure mating. The connector includes board guide and pick-and-place features for efficient manufacturing. The insulation is natural colored with a height of 4.75mm, and the contact finish is tin with a thickness of 30µin. The housing material meets UL94 V-0 flammability rating. This receptacle is RoHS3 compliant and REACH unaffected (unverified). It is commonly used in compact electronic devices where space is limited.

87024-610TRLF Quick Information

Product Type: Rectangular Connector - Receptacle
Canonical Name: 20 Position 1.27mm Pitch Surface Mount Receptacle, Female Socket, Board to Board
Subcategory: Board to Board

87024-610TRLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

87024-610TRLF Estimated Pricing

Qty Low High
1+ $2.04 $2.04
10+ $1.73 $1.73
100+ $1.47 $1.47
500+ $1.28 $1.28
750+ $1.17 $1.17
2,250+ $1.15 $1.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

87024-610TRLF Features

  • 20 positions in dual-row configuration.
  • 1.27mm pitch for high-density designs.
  • Surface mount solder termination.
  • Push-pull fastening for secure mating.
  • Board guide and pick-and-place features.

87024-610TRLF Applications

  • Board-to-board interconnects in compact electronics.
  • Automated assembly with pick-and-place compatibility.
  • High-density signal routing applications.
  • Consumer electronics and industrial controls.

87024-610TRLF FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 87024-610TRLF have?

20 positions.

What is the pitch of this connector?

1.27mm (0.050").

What is the mounting type?

Surface mount.

What is the fastening type?

Push-pull.

What is the contact finish?

Tin with 30µin thickness.

Is this connector RoHS compliant?

RoHS3 compliant (unverified).

What is the insulation height?

4.75mm (0.187").
