| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,730 pcs
|
2730 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Type |

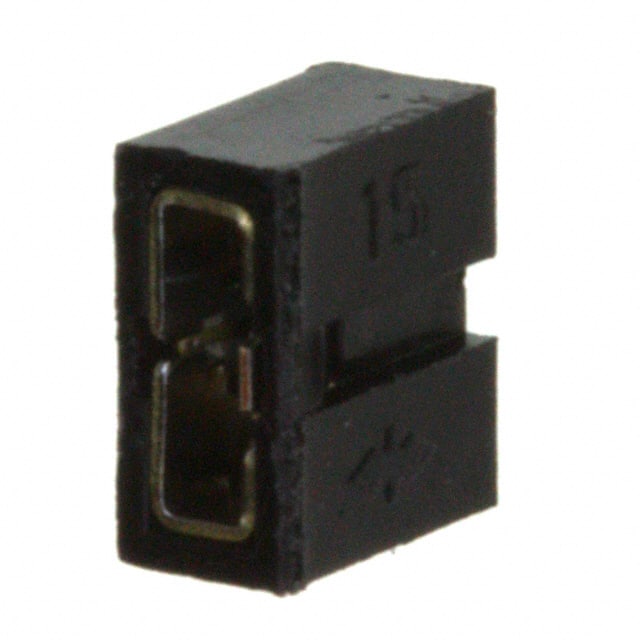

The 86730-101LF is a 2.00mm pitch open top shunt (jumper) from Amphenol ICC. It features 2 positions (1 x 2) of female sockets with gold-plated contacts, ensuring low contact resistance and corrosion resistance. The black housing is made from glass-filled PBT with a UL94 V-0 flammability rating.
This shunt is rated for 1A current and is designed for use in rectangular connector systems where it can jumper adjacent pins on headers. The open top design allows for easy insertion of test probes. The contact finish thickness is 30.0 microinches of gold over the contact area.
The component comes in a compact package; typical applications include setting device addresses, enabling/disabling functions, or configuration on PCBs. It is listed as RoHS and REACH compliant and has an MSL rating of 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.96 | $0.96 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.77 | $0.77 |
| 50+ | $0.73 | $0.73 |
| 100+ | $0.70 | $0.70 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.59 | $0.59 |
| 2,500+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions arranged in a 1 x 2 configuration.
The pitch is 2.00mm (0.079 inches).
It is rated for 1A.
The housing is made of glass-filled PBT with a UL94 V-0 flammability rating.
Contacts have gold finish with 30.0µin (0.76µm) thickness.
It is black.
The part is marked as RoHS3 Compliant (unverified).
