| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Termination Style | |
| Type |

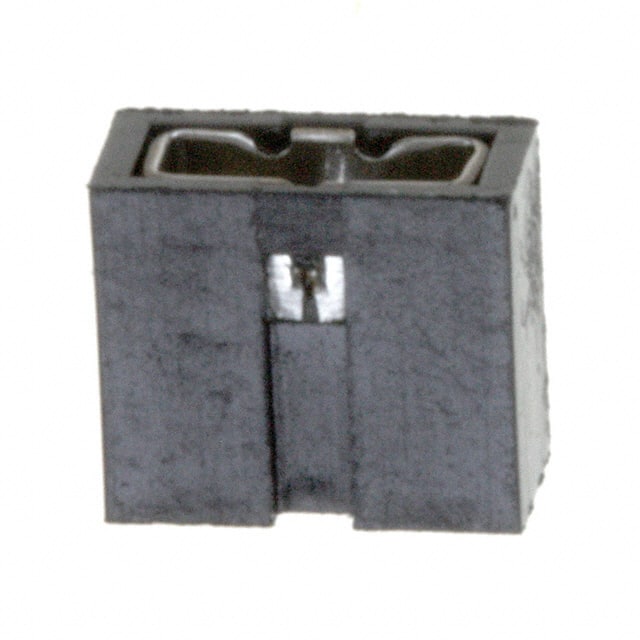

The 86730-001LF is a shunt jumper from Amphenol ICC, part of the Minitek series, designed for 2.00mm pitch connections. It features two female sockets in a 1x2 configuration, with gold-plated contacts (8µin thickness) for reliable conductivity. The open top design allows access for test probes or shunt insertion.
Rated for 1A, this component is suitable for low-current configuration or programming applications. The housing is molded from glass-filled PBT with a UL94 V-0 flammability rating, ensuring flame retardance. The black housing provides visual contrast for easy identification.
Mounting is through hole with solder termination, making it compatible with standard PCB assembly processes. The 2-position design is ideal for setting device addresses or enabling/disabling features in electronic systems. This part is RoHS, REACH, and MSL 1 compliant for moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.54 | $0.54 |
| 25+ | $0.51 | $0.51 |
| 50+ | $0.48 | $0.48 |
| 100+ | $0.46 | $0.46 |
| 250+ | $0.43 | $0.43 |
| 500+ | $0.41 | $0.41 |
| 1,000+ | $0.39 | $0.39 |
| 2,500+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions (1 x 2).
The pitch is 2.00mm (0.079").
The current rating is 1A.
Through hole mounting with solder termination.
Gold, with 8µin thickness.
Polybutylene Terephthalate (PBT), glass filled, UL94 V-0 rated.
Female sockets.
