Mfr Part #:

86600001009

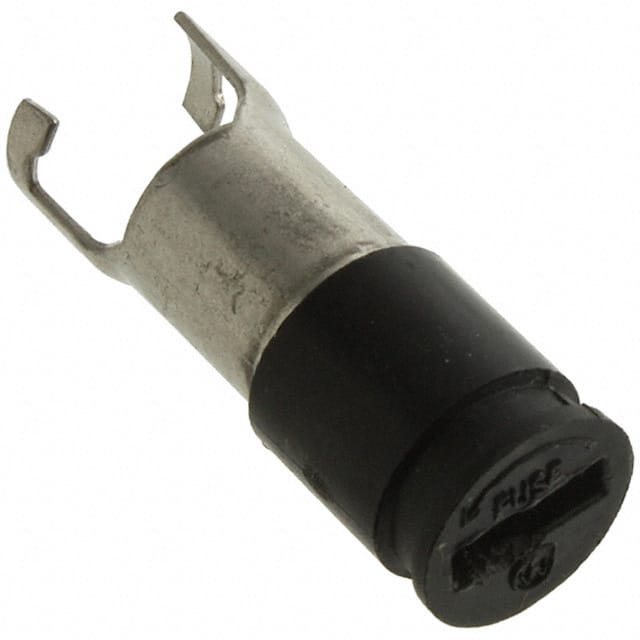

The Littelfuse Inc. 86600001009 is a fuse cap designed for 6.3x32mm fuses. It offers a rated voltage of 250V and IP40 protection.

Stock on Request

86600001009 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Littelfuse Inc.
Accessory Type	Cap (Cover)
Contact Resistance	≤ 5mΩ
For Use With	Fuseholder; 3AG, 1 1/4" L x 1/4" Dia
Insulation Resistance	> 103 MΩ
Operating Temperature	-40°C to +85°C
Rated Voltage	250V

View Similar Products (0)

86600001009 Description

Short technical summary and product information.

The Littelfuse Inc. 86600001009 is a cap accessory for cartridge fuseholders, specifically designed for 6.3x32mm (3AB/3AG) fuses. This component is constructed from black thermoplastic with a UL 94V0 rating, ensuring durability and safety.

Key electrical specifications include a rated voltage of 250V. The cap provides IP40 protection against ingress of solid objects and PC2 protection category according to IEC standards. The operating temperature range is -40°C to +85°C, making it suitable for various environmental conditions. The terminals are solderable tinned, and the mounting type is compatible with 12.7mm diameter D-holes.

This fuse cap is supplied in bulk packaging with a standard quantity of 100 units. It is designed to complement Littelfuse fuseholder series, providing a secure enclosure for the fuse.

86600001009 Quick Information

Product Type: Fuse Cap

Canonical Name: Littelfuse Inc. 86600001009 Fuse Cap

Subcategory: Fuse Caps

86600001009 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

86600001009 Features

Cap for 6.3x32mm fuses.
Rated for 250V operation.
IP40 protection rating.
Thermoplastic UL 94V0 construction.
Bulk packaged, 100 per package.

86600001009 Applications

Used with 3AB and 3AG fuse types.
Suitable for panel mount fuseholders.
Provides enclosure for cartridge fuses.
Designed for circuit protection applications.

86600001009 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the rated voltage of the 86600001009 fuse cap?

The rated voltage is 250V.

What are the current ratings of the 86600001009 fuse cap?

The current ratings are 10A (VDE), 16A (CSA/UL/CSA), and 20A (UL).

What is the operating temperature range?

-40°C to +85°C.

What is the ingress protection rating?

IP40 per IEC 60529.

What fuse sizes are compatible with this cap?

5x20mm and 6.3x32mm (3AB/3AG) fuses.

What terminal options are available?

Solderable tinned or 4.8mm quick connect terminals.

What is the required panel cutout for mounting?

A 12.7mm diameter D-hole or double D-hole.
