Mfr Part #:

864B509S

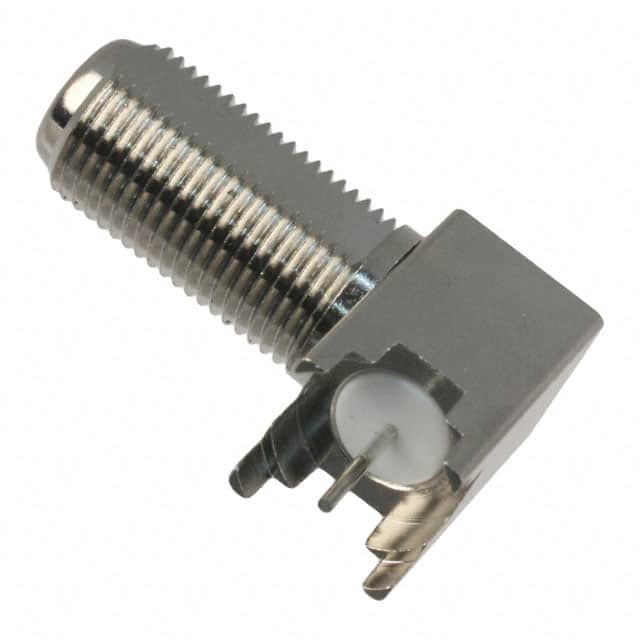

Name: 864B509S
Brand: Winchester Interconnect
SKU: 864B509S

Description:

CONN F JACK R/A NON-CONSTANT PCB

Stock on Request

864B509S Description

Short technical summary and product information.

CONN F JACK R/A NON-CONSTANT PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

864B509

Winchester Interconnect

CONN F JACK R/A NON-CONSTANT PCB

864F509S

Winchester Interconnect

CONN F JACK R/A NON-CONSTANT PCB

Category	Coaxial Connector (RF) Assemblies
Manufacturer Name	Winchester Interconnect
Center Contact Material	Brass
Connector Style	F Type
Connector Type	Jack, Female Socket
Contact Termination	Solder
Fastening Type	Threaded
Frequency	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Shield Termination	Solder
