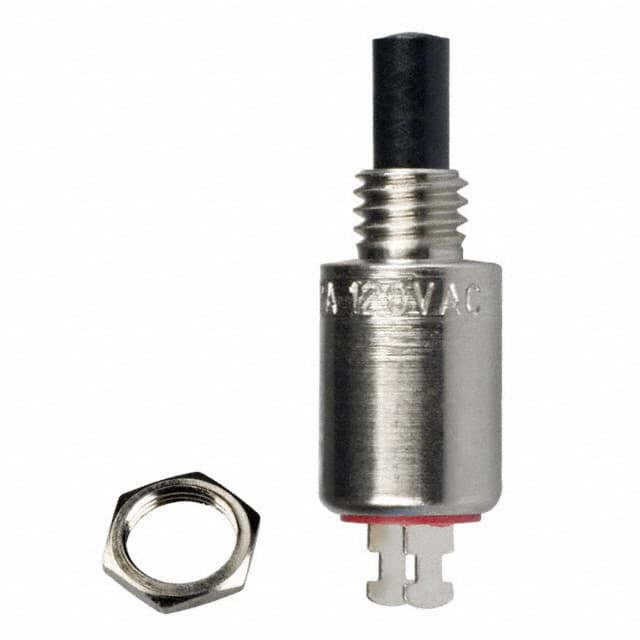

8633ZQE2 The C&K Components 8633ZQE2 is a microminiature pushbutton switch designed for space-limited applications. It features a SPST-NC circuit and a contact rating of 250mA at 120V.
Mfr Part #:

8633ZQE2

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components 8633ZQE2 is a microminiature pushbutton switch designed for space-limited applications. It features a SPST-NC circuit and a contact rating of 250mA at 120V.
✓ Total Stock: 70 pcs
$ Price Range: $0.75

8633ZQE2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8633ZQE2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Contact Material
Contact Resistance
Current Rating (Amps)
Features
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

8633ZQE2 Description

Short technical summary and product information.

The C&K Components 8600 Series 8633ZQE2 is a microminiature pushbutton switch ideal for applications where space is limited, such as in networking, detection, and telecommunications equipment. This switch offers a contact rating of 250mA at 120V AC or 28V DC and 250mA at 250V AC, with an electrical life of 250,000 actuations at full load.



Constructed with a glass-filled phenolic or diallyl phthalate case and a glass-filled nylon plunger, the 8633ZQE2 operates within a temperature range of -30°C to 65°C. It features a SPST-NC (Single Pole Single Throw - Normally Closed) circuit and a momentary (On-Mom) switch function. The termination style is solder lug, and it is designed for panel mounting.



Key specifications include a contact resistance below 30 mΩ typical, insulation resistance of 10⁹ Ω minimum, and dielectric strength of 500 Vrms minimum. The switch has epoxy sealed terminals and a panel cutout diameter of 4.37mm. It is RoHS compliant and suitable for various electronic and industrial equipment requiring precise, durable control.

8633ZQE2 Quick Information

Product Type: Pushbutton Switch
Series: 8600 Series
Canonical Name: C&K Components 8600 Series SPST-NC Pushbutton Switch
Subcategory: Pushbutton Switch

8633ZQE2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8633ZQE2 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

8633ZQE2 Features

  • Microminiature size for space-limited applications.
  • SPST-NC circuit with momentary contact.
  • Rated for 250mA at 120V AC or 28V DC.
  • Durable construction with phenolic or DAP case.
  • Panel mount design with solder lug terminals.

8633ZQE2 Applications

  • Ideal for telecommunications equipment.
  • Used in networking hardware.
  • Suitable for detection devices.
  • Applicable in computer peripherals.

8633ZQE2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 8633ZQE2 switch?

The switch is rated for 120 V.

What is the contact rating of the 8633ZQE2?

The contact rating is 0.25A at 120V AC/DC.

What is the operating temperature range for the switch?

-30°C to 65°C.

Is the 8633ZQE2 RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified.

What is the electrical life expectancy of the switch?

The electrical life is 250,000 actuations at full load.
