| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage Rating |

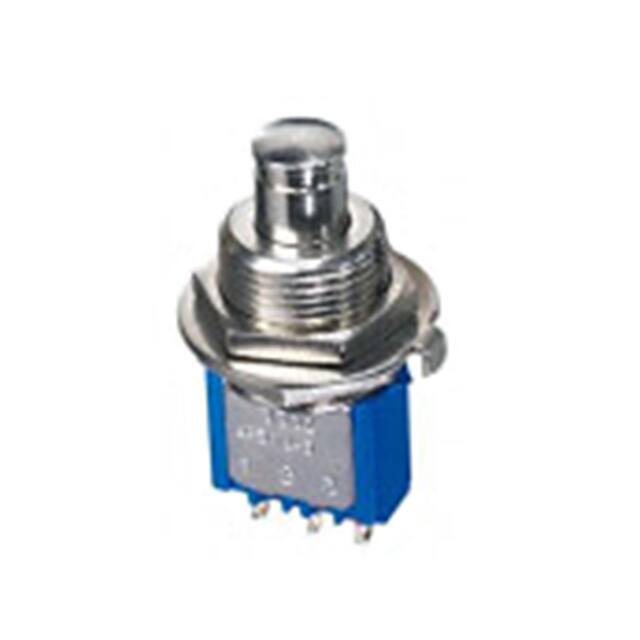

The APEM Inc. 8632A is a reliable single pole PCB switch with ON MOM functionality, suitable for industrial and commercial electrical applications. This pushbutton switch offers a robust design with solder lug terminals for secure connections.
Key electrical specifications include a maximum current rating of 6A AC and 4A DC at 125V. The switch exhibits an initial contact resistance of 10 mΩ max and an insulation resistance of 1,000 MΩ min at 500 VDC. Dielectric strength is rated at 1,000 Vrms between terminals and 2,000 Vrms between terminals and frame. The electrical life is rated for 30,000 cycles at full load.
Environmentally, the 8632A operates within a temperature range of -40°C to +85°C. Mechanically, it features a torque rating of 1.25 Nm max applied to the nut and a total travel of 2.70 mm. The bushing diameter is available in 6.35 mm (1/4) and 11.9 mm (15/32) sizes, with a panel cutout diameter of 6.50 mm. This switch is designed for panel mounting, specifically rear mounting.
Distinctive features include its momentary or alternate action capability and UL approval. The contact material is silver, and the switch function is On-Mom. This component is part of the 8000 PCB series from APEM.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The switch is rated for 6A AC and 4A DC at 125V with a resistive load.
It uses solder lug terminals.
The switch function is ON-MOM (Momentary).
The RoHS status is RoHS3 Compliant.
