| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

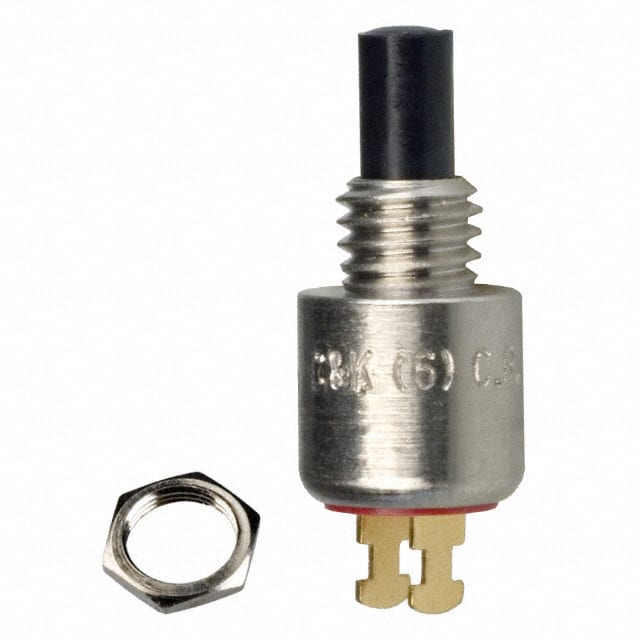

The C&K Components 8631ZBD2 is a microminiature pushbutton switch from the 8600 series, designed for applications where space is limited. It features a Standard (SPST-NO) circuit configuration with a contact rating of 0.4VA at 20V.
This switch is suitable for panel mounting and has a solder lug termination style. The operating temperature range is -30°C to 65°C. The actuator is a plunger type, and the color is black with no marking.
Commonly used in networking, detection, and telecommunications equipment, this switch offers a typical initial contact resistance below 30 mΩ and an insulation resistance of at least 1 GΩ. The dielectric strength is a minimum of 500 Vrms at sea level. The 8631 and 8633 models have an electrical life of 250,000 actuations at full load, while the 8632 model has 100,000 actuations.
Materials include a glass-filled phenolic or diallyl phthalate case and a glass-filled nylon plunger. The bushing is nickel-plated brass, and terminals are copper alloy, silver-plated for 8631 and 8632 models. The 8633 model uses coin silver for its Q contact material.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 65°C.
The contact rating is 500 mA @ 120 V AC or 28 V DC, and 250 mA @ 250 V AC for models 8631 and 8632.
The electrical life for the 8631 model is 250,000 actuations at full load.
The contact resistance is typically below 30 mΩ initial.
The insulation resistance is a minimum of 1 GΩ.
The dielectric strength is a minimum of 500 Vrms at sea level.
The voltage rating is 20 V.
