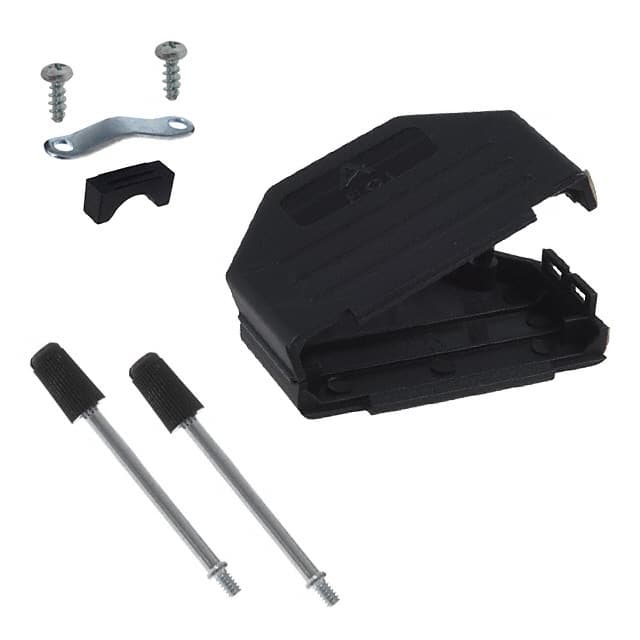

86303639BLF Hinged backshell for D-Sub connectors with 25 positions and 180° cable exit. Made of black polyamide (nylon) with mating screws 4-40 and strain relief.
Mfr Part #:

86303639BLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Hinged backshell for D-Sub connectors with 25 positions and 180° cable exit. Made of black polyamide (nylon) with mating screws 4-40 and strain relief.
✓ Total Stock: 200 pcs
$ Price Range: $2.20 - $3.82

86303639BLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

86303639BLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Accessory Type
Automotive Grade
Cable Exit
Cable Type
Color
Features
Hardware
Industrial Grade
Material
Medical Grade
Military Grade
Number of Positions
SVHC Present
Shielding
Tape & Reel
View Similar Products (0)

86303639BLF Description

Short technical summary and product information.

The 86303639BLF is a hinged backshell designed for D-Sub connectors, accommodating 25 positions. It features a 180° cable exit for round cables and is unshielded. The backshell is constructed from black polyamide (PA) nylon, providing durability and lightweight properties. It includes mating screws 4-40 and integrated strain relief for secure cable management. This accessory is suitable for applications requiring reliable cable termination and protection in D-Sub connector assemblies.

86303639BLF Quick Information

Product Type: D-Sub Backshell
Canonical Name: Hinged Backshell for D-Sub Connectors, 25 Positions, 180° Cable Exit, Unshielded, Black, Nylon
Subcategory: Backshells

86303639BLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

86303639BLF Estimated Pricing

Qty Low High
1+ $3.82 $3.82
10+ $3.25 $3.25
25+ $3.04 $3.04
50+ $2.90 $2.90
100+ $2.76 $2.76
300+ $2.55 $2.55
500+ $2.46 $2.46
1,000+ $2.35 $2.35
2,500+ $2.20 $2.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

86303639BLF Features

  • Hinged backshell for 25-position D-Sub connectors.
  • 180° cable exit for round cables.
  • Unshielded design with black nylon construction.
  • Includes 4-40 mating screws.
  • Integrated strain relief for cable management.

86303639BLF Applications

  • Used in D-Sub connector cable assemblies.
  • Provides strain relief for round cables.
  • Suitable for industrial and commercial applications.
  • Ideal for 25-pin D-Sub connections.

86303639BLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

25

What is the cable exit angle?

180°

What material is the backshell made of?

Polyamide (PA), Nylon

What color is the backshell?

Black

Does it include mating screws?

Yes, 4-40 mating screws

Does it have strain relief?

Yes, strain relief hardware included

Is it shielded?

No, unshielded
