| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Exit | |
| Cable Type | |
| Color | |
| Features | |
| Flammability Rating | |
| Hardware | |
| Material | |
| Number of Positions | |
| Operating Temperature Range | |
| Shielding |

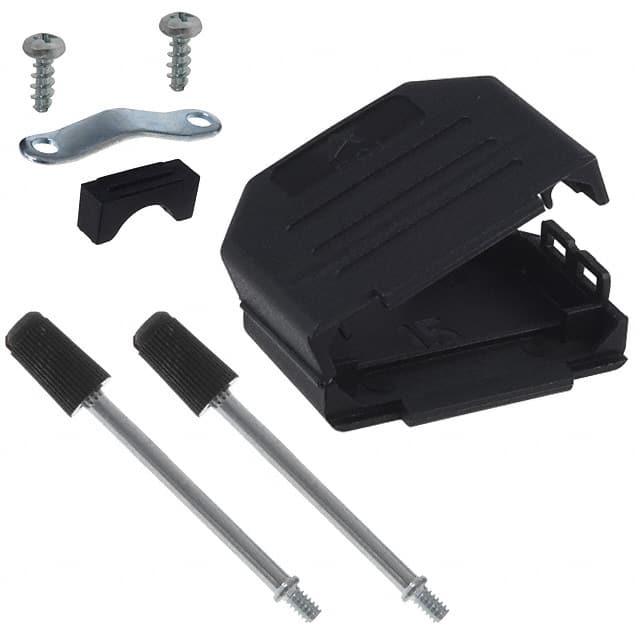

The 86303638BLF is a hinged backshell designed for D-Subminiature connectors, manufactured by Amphenol ICC. It accommodates 15 positions and provides a 180° cable exit for straight cable routing. The backshell is made of black polyamide (nylon) material, offering durability and lightweight construction. It is unshielded and includes strain relief hardware to secure the cable and prevent accidental disconnection. Mating screws with 4-40 thread are included for reliable attachment to the connector.
This backshell supports round cable types and operates over a temperature range of -55°C to +105°C. It meets UL 94 HB flammability rating. The design is suitable for various D-Sub connector configurations, providing mechanical protection and cable management in applications such as telecommunications, industrial equipment, and data communication systems.
The backshell is a mechanical accessory and does not require soldering or termination. It simply snaps over the connector and cable, secured by the included screws. This part is a standard component in the D-Sub accessories family, offering a cost-effective solution for cable strain relief and connector protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.70 | $3.70 |
| 10+ | $3.14 | $3.14 |
| 25+ | $2.94 | $2.94 |
| 50+ | $2.80 | $2.80 |
| 100+ | $2.67 | $2.67 |
| 300+ | $2.47 | $2.47 |
| 500+ | $2.38 | $2.38 |
| 1,000+ | $2.27 | $2.27 |
| 2,500+ | $2.13 | $2.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The backshell supports 15 positions.
The cable exit is 180° (straight).
It is made of polyamide (PA), nylon, in black color.
No, it is unshielded.
The operating temperature range is -55°C to +105°C.
The flammability rating is UL 94 HB.
Yes, it includes strain relief hardware and mating screws 4-40.
