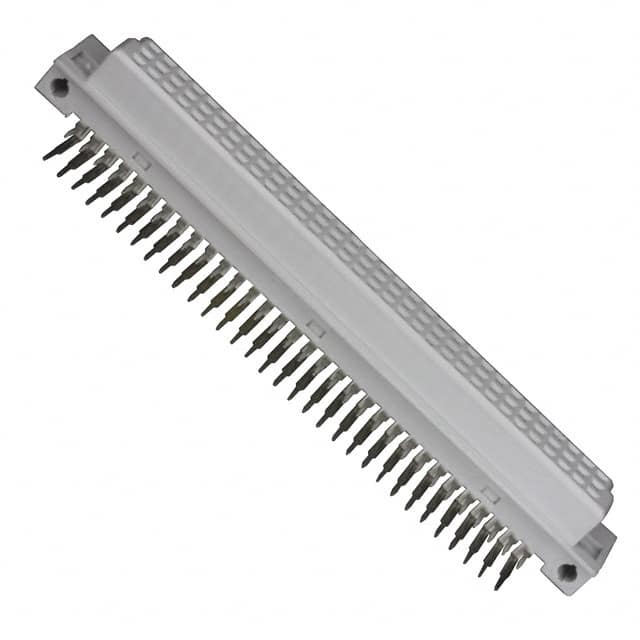

This is a DIN 41612 signal receptacle from the Amphenol ICC backplane connector family. It features a right angle through hole mounting style with solder termination, making it suitable for PCB applications requiring a compact right angle interface. The connector has 96 total positions with 64 positions loaded in 3 rows, and uses a 2.54mm pitch for adequate spacing of PCB traces.
Electrical characteristics include a typical current rating of 1.5A (maximum 2A per contact), maximum contact resistance of 20mΩ, and minimum insulation resistance of 10⁶ MΩ. The connector is designed for a test voltage of 1000V rms and operates over a temperature range of -55°C to +125°C.
The insulator is made of polyester thermoplastic, and the contacts are copper alloy with gold over nickel (or GXT) plating on the mating surface and tin over nickel on the termination area. This connector meets performance class 2 standards (400 mating cycles).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.95 | $2.95 |
| 10+ | $2.51 | $2.51 |
| 25+ | $2.35 | $2.35 |
| 50+ | $2.24 | $2.24 |
| 100+ | $2.13 | $2.13 |
| 352+ | $1.95 | $1.95 |
| 704+ | $1.86 | $1.86 |
| 1,056+ | $1.81 | $1.81 |
| 2,816+ | $1.68 | $1.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions total, with 64 positions loaded.
2.54mm (0.100 inches).
Typical 1.5A per contact at 20°C, with a maximum of 2A per contact.
Through hole, right angle mounting with solder termination.
-55°C to +125°C.
Gold over nickel or GXT over nickel on the mating surface, and tin over nickel on the termination area.
Performance class 2 (400 mating cycles).
