Mfr Part #:

86094647814755ELF

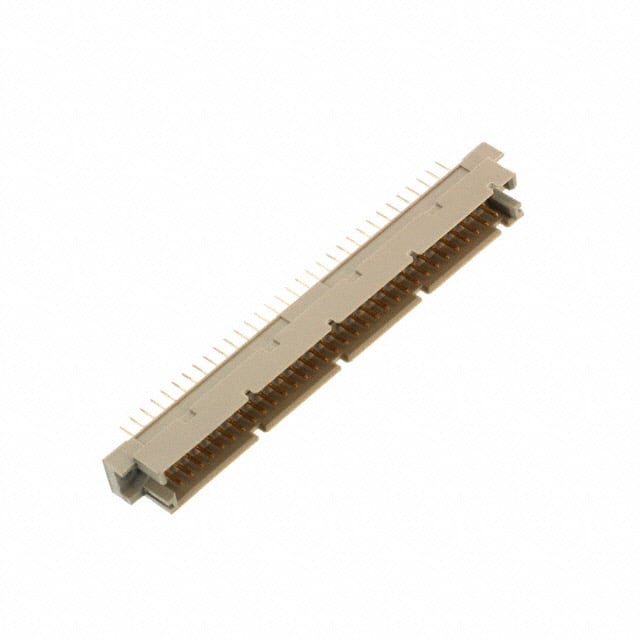

DIN 41612 signal header with 96 positions (64 loaded), 3 rows, 2.54mm pitch. Through hole mounting with solder termination and gold contact finish.

✓ Total Stock: 352 pcs

$ Price Range: $1.61 - $2.83

86094647814755ELF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	352 pcs On Request	352 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

86094647814755ELF Description

Short technical summary and product information.

This DIN 41612 signal header from Amphenol ICC features 96 positions in a 3-row configuration with a 2.54mm pitch. It is designed for backplane and board-to-board interconnects per DIN 41612 and IEC 603-2 specifications.

The header has 64 positions loaded and uses gold over nickel plating on the mating contacts for reliable electrical performance. The contacts are made of copper alloy, and the insulator is polyester thermoplastic. It is terminated via through hole solder connection.

Electrical specifications include a nominal current rating of 1.5A (maximum 2A), contact resistance ≤20mOhm, insulation resistance ≥106MOhm, and test voltage of 1000V rms. The operating temperature range is -55°C to +125°C. Performance class 2 ensures 400 mating cycles.

Available packaging options include tray, tube, or carton. This connector is suitable for industrial, telecom, and data applications.

86094647814755ELF Quick Information

Product Type: DIN 41612 Connector

Series: 8609

Canonical Name: DIN 41612 Signal Header, 96 Positions, 3 Rows, 2.54mm Pitch, Through Hole, Gold Contact Finish

Subcategory: DIN 41612 Signal Header

86094647814755ELF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: Non-Compliant

Lead Free: Lead-Free

86094647814755ELF Estimated Pricing

Qty	Low	High
1+	$2.83	$2.83
10+	$2.40	$2.40
25+	$2.25	$2.25
50+	$2.14	$2.14
100+	$2.04	$2.04
352+	$1.87	$1.87
704+	$1.78	$1.78
1,056+	$1.73	$1.73
2,816+	$1.61	$1.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

86094647814755ELF Features

96 positions in 3 rows for high-density backplane connections.
2.54mm pitch for standard PCB routing.
Gold contact finish for reliable electrical performance.
Through hole solder termination for secure mounting.
Performance class 2 with 400 mating cycles.

86094647814755ELF Applications

Backplane interconnects in industrial control systems.
Board-to-board connections in telecom equipment.
Data communication systems requiring DIN 41612 compliance.

86094647814755ELF FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

96 positions total, with 64 positions loaded.

What is the pitch of this DIN 41612 header?

2.54mm pitch.

What is the current rating of this connector?

1.5A nominal, with a maximum of 2A.

What mounting type does this header use?

Through hole with solder termination.

What is the temperature range for this header?

-55°C to +125°C.

What performance class is this connector?

Performance class 2, rated for 400 mating cycles.

What contact finish is used on this header?

Gold over nickel on the mating area, tin over nickel on solder terminations.

Category	DIN 41612
Manufacturer Name	Amphenol ICC
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Resistance	≤20mOhm
Current Rating	1.5A
Insulation Resistance	≥106MOhm
Insulator Material	Polyester Thermoplastic
Lead Spacing	2.54 mm
Lead Style	Solder
Level, Class	2
Mating Cycles	400 cycles
Medical Grade	Yes
Mounting Type	Through Hole
Number of Positions	96
Number of Positions Loaded	64
Number of Rows	3
Pitch	2.54mm
Plating	Gold over Nickel (mating), Tin over Nickel (solder termination)
Style	R
Temperature Range	-55°C to +125°C
Termination	Solder
