| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
147 pcs
|
147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

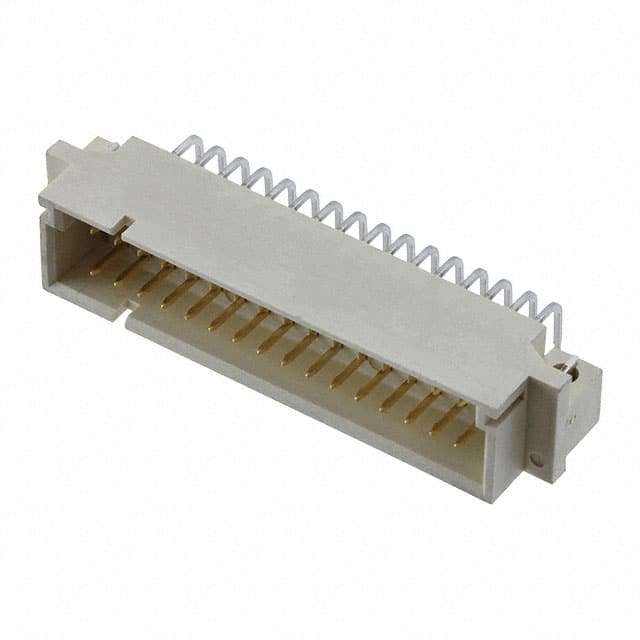

This Amphenol ICC DIN 41612 header connector (part number 86094327313T55F1LF) is a male pin header designed for backplane interconnection. It features 48 total positions with 32 positions loaded, arranged in 3 rows at a 2.54mm pitch. The connector is rated for Class 2 level applications.
The contact finish is gold or Gold GXT™, providing reliable conductivity and corrosion resistance. The connector is designed for board edge mounting with through-hole right-angle termination, and includes a board lock feature for secure attachment. The standard termination is solder.
This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance statuses are unverified. It is suitable for use in industrial and commercial backplane systems where reliable high-density connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.02 | $4.02 |
| 10+ | $3.41 | $3.41 |
| 25+ | $3.20 | $3.20 |
| 50+ | $3.05 | $3.05 |
| 192+ | $2.77 | $2.77 |
| 384+ | $2.64 | $2.64 |
| 576+ | $2.56 | $2.56 |
| 1,152+ | $2.44 | $2.44 |
| 2,688+ | $2.30 | $2.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 total positions, with 32 positions loaded.
2.54mm (0.100 inches).
Board edge, through hole, right angle.
3 rows.
Gold or Gold, GXT™.
Yes, it includes a board lock.
C/2 (1/2 C).
