| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
384 pcs
|
384 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

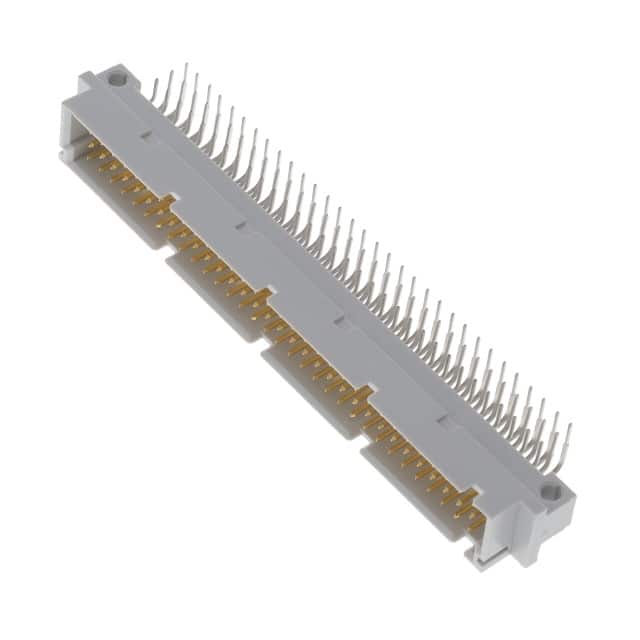

The 86093967113765E1LF is a Type C DIN 41612 header connector from Amphenol ICC. It features 96 male pin positions arranged in 3 rows with all positions loaded. The connector uses a standard 2.54mm (0.100 inch) pitch suitable for backplane and card-edge interconnect applications.
Mechanically the part is configured for through hole right angle mounting with solder termination. The contact finish is gold providing reliable electrical connection and corrosion resistance. This connector meets Class 1 performance level per DIN 41612 specifications.
Applications include backplane systems, telecommunications equipment, industrial control, and data processing where high-density signal interconnection is required. The right angle orientation enables daughter card insertion parallel to the backplane.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.17 | $6.17 |
| 10+ | $5.35 | $5.35 |
| 25+ | $5.01 | $5.01 |
| 50+ | $4.77 | $4.77 |
| 100+ | $4.34 | $4.34 |
| 192+ | $4.12 | $4.12 |
| 576+ | $4.01 | $4.01 |
| 1,152+ | $3.82 | $3.82 |
| 2,688+ | $3.60 | $3.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions, all loaded, in 3 rows.
2.54mm (0.100 inch).
Through hole, right angle with solder termination.
Type C.
Gold.
Class 1.
