| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,288 pcs
|
2288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Termination Style |

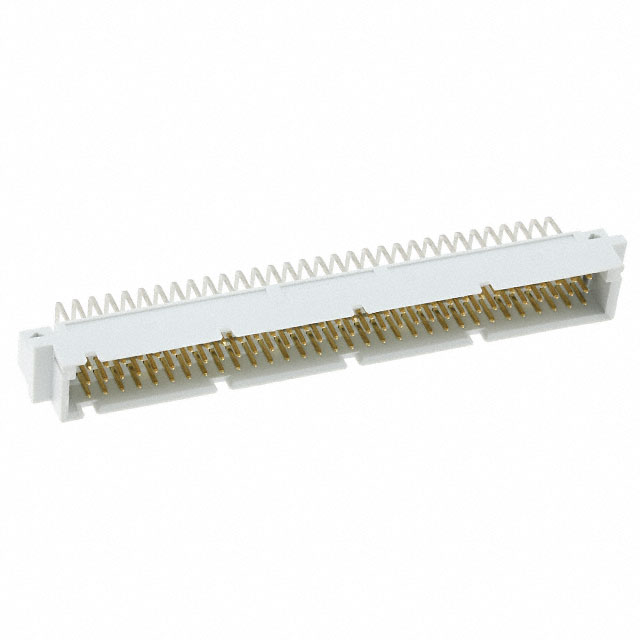

The Amphenol 86093967113755ELF is a high-quality DIN 41612 connector designed for robust electronic applications. This male header features 96 positions arranged in 3 rows, with a standard pitch of 0.100" (2.54mm).
The connector is equipped with gold-plated contacts for reliable conductivity and durability. It is designed for through-hole mounting with a right-angle orientation, making it suitable for various PCB layouts. The insulation material is polyester thermoplastic, glass-filled, ensuring good electrical and mechanical properties.
Operating within a wide temperature range from -55°C to 125°C, the 86093967113755ELF is built to withstand demanding environmental conditions. The termination style is solder level, class 2, providing a secure connection. This component is RoHS3 compliant, indicating adherence to environmental regulations.
Key specifications include 96 positions, a 2.54mm pitch, and a -55°C to 125°C operating temperature. The right-angle mounting and through-hole termination make it a versatile choice for backplane connectors and other interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 125°C.
The pitch is 2.54mm.
It has 96 positions.
The contact finish is Gold.
It uses Through Hole, Right Angle mounting.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
