| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
144 pcs
|
144 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

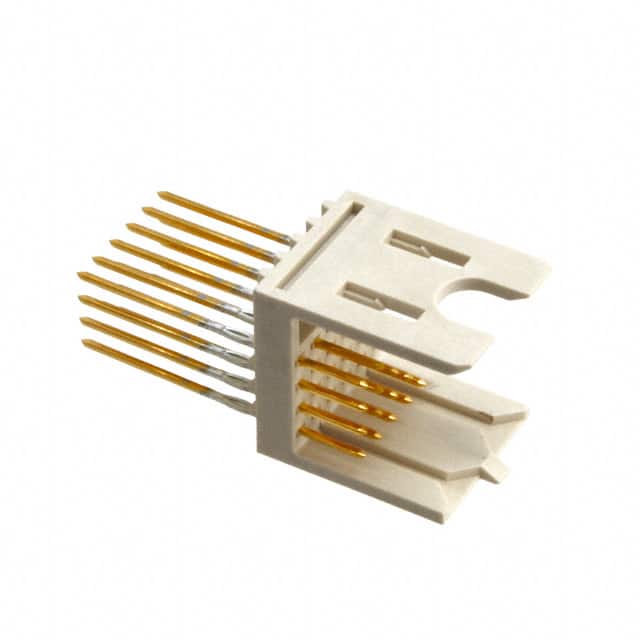

The 85826-121LF from Amphenol ICC is a 24 position, 4 row header with male pins arranged at a 2.00mm pitch. This through hole connector features a press-fit termination style, providing a reliable solderless connection for backplane applications. The contacts are finished with 30.0µin (0.76µm) of gold, ensuring good conductivity and corrosion resistance.
The connector is available in a natural white color and all 24 positions are loaded. The 2.00mm pitch and 4 row configuration make it suitable for high-density backplane interconnect designs. The press-fit termination allows for efficient assembly without the need for soldering, which can be beneficial in high-volume manufacturing environments.
This header is categorized under backplane connectors and is designed for use in specialized interconnect applications. The through hole mounting style provides mechanical stability, while the gold contact finish helps maintain signal integrity over repeated mating cycles.
| Qty | Low | High |
|---|---|---|
| 3,072+ | $4.25 | $4.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 85826-121LF has 24 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
The mounting type is through hole.
The termination is press-fit.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The 85826-121LF has 4 rows.
