Mfr Part #:

857-029-525-108

Name: 857-029-525-108
Brand: Edac
SKU: 857-029-525-108

Mfr Name: Edac

Description:

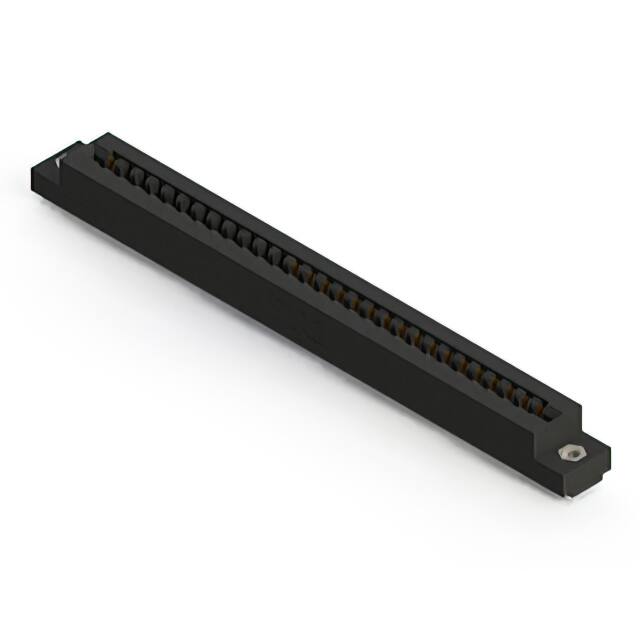

CONN EDGE SGL FMALE 29POS 0.156

Stock on Request

857-029-525-108 Description

Short technical summary and product information.

CONN EDGE SGL FMALE 29POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

857-029-527-108

Edac

CONN EDGE SGL FMALE 29POS 0.156

857-029-531-108

Edac

CONN EDGE SGL FMALE 29POS 0.156

Category	Edgeboard Connectors
Manufacturer Name	Edac
Card Thickness	0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Mounting Type	Through Hole
Number of Positions	29
Number of Rows	1
Operating Temperature	-40°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Single
Termination	Solder
