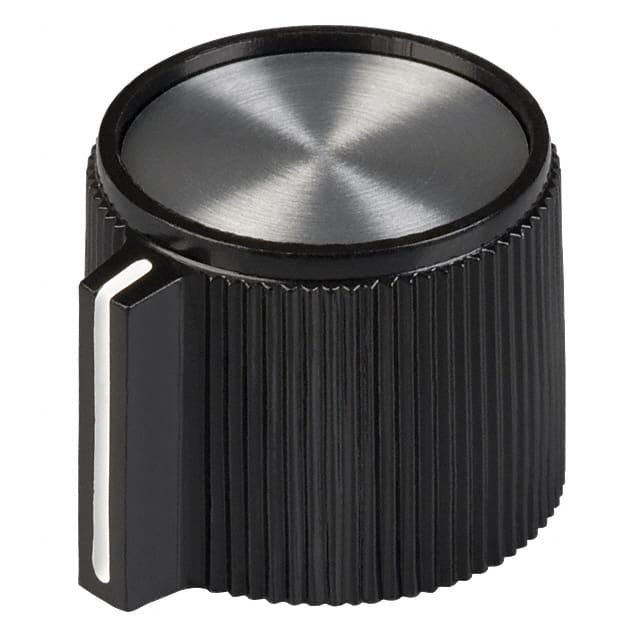

8569 Keystone Electronics 8569 is a knurled, straight ABS knob with a cylindrical style and a line indicator on the side. It features a 6.35mm (0.250") shaft diameter, 23.00mm (0.905") diameter, and 20.10mm (0.791") height.
Mfr Part #:

8569

Available from 1 distributors
Mfr Name: Keystone Electronics
Keystone Electronics
Keystone Electronics 8569 is a knurled, straight ABS knob with a cylindrical style and a line indicator on the side. It features a 6.35mm (0.250") shaft diameter, 23.00mm (0.905") diameter, and 20.10mm (0.791") height.
✓ Total Stock: 49 pcs
$ Price Range: $2.76 - $4.80

8569 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8569 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Diameter
Features
Height
Indicator
Lead Style
Material
SVHC Present
Shaft Size
Style
Type
View Similar Products (0)

8569 Description

Short technical summary and product information.

The Keystone Electronics 8569 is a cylindrical knob with a pointer, designed for use with 6.35mm (0.250") diameter shafts. It is constructed from black ABS plastic with a knurled, straight surface for a secure grip. A line indicator on the side provides clear positional feedback.



The knob has a diameter of 23.00mm (0.905") and a height of 20.10mm (0.791"). It is secured to the shaft using two 8-32 set screws. The mounting hole has an inner diameter of 6.1mm (0.240"), with a counterbore diameter of 16.8mm (0.660") and a counterbore depth of 16.3mm (0.640").



This knob is RoHS compliant and is suitable for a variety of instrumentation and control panel applications where a durable, cost-effective knob with a clear indicator is required.

8569 Quick Information

Product Type: Knob
Canonical Name: Knurled, Straight ABS Knob with Line Indicator, 6.35mm Shaft
Subcategory: Instrumentation Knob

8569 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8569 Estimated Pricing

Qty Low High
1+ $4.80 $4.80
10+ $3.68 $3.68
50+ $3.18 $3.18
100+ $3.10 $3.10
250+ $2.76 $2.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

8569 Features

  • Knurled, straight ABS plastic construction.
  • Cylindrical style with line indicator.
  • Fits 6.35mm (0.250") diameter shafts.
  • Secured with two 8-32 set screws.
  • RoHS compliant for environmental standards.

8569 Applications

  • Ideal for control panel knobs.
  • Used in test and measurement equipment.
  • Suitable for audio and video devices.
  • Common in industrial instrumentation.

8569 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the shaft diameter for the Keystone 8569 knob?

The shaft diameter is 6.35mm (0.250").

What material is the Keystone 8569 knob made from?

The knob is made from ABS plastic.

What is the diameter of the Keystone 8569 knob?

The knob diameter is 23.00mm (0.905").

Is the Keystone 8569 knob RoHS compliant?

Yes, the knob is RoHS compliant.

How is the Keystone 8569 knob attached to the shaft?

It is attached using two 8-32 set screws.
