| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination |

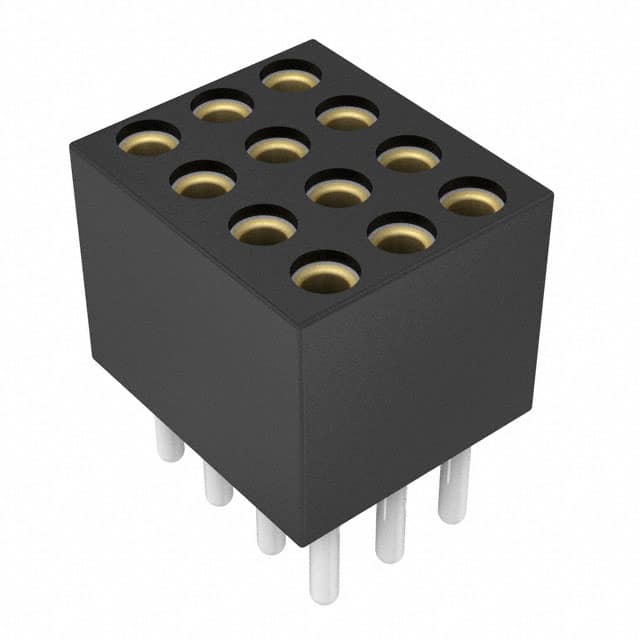

The Preci-Dip 855-87-012-10-001101 is a 12 position female socket connector designed for board-to-board applications. It features a 1.27mm pitch and 3 rows of contacts, all positions loaded. The connector uses a push-pull fastening type and is terminated via solder to a through hole mounting.
Electrical rating is 1A with an operating temperature range of -55°C to 125°C. The insulation is black with a height of 4.00mm and is rated UL94 V-0 for flammability. Contacts are tin finished with flash thickness, and the contact length is 2.40mm. Row spacing is also 1.27mm.
This connector is suitable for dense PCB layouts requiring reliable board-to-board interconnections. The through hole mounting provides robust mechanical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.68 | $3.68 |
| 10+ | $3.35 | $3.35 |
| 25+ | $3.17 | $3.17 |
| 100+ | $2.95 | $2.95 |
| 250+ | $2.58 | $2.58 |
| 360+ | $2.51 | $2.51 |
| 1,080+ | $2.18 | $2.18 |
| 2,520+ | $2.04 | $2.04 |
| 5,040+ | $1.95 | $1.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions, all loaded, in 3 rows.
1.27mm (0.050 inch).
1 Ampere.
Through hole, solder termination.
-55°C to 125°C.
UL94 V-0.
Tin, flash thickness.
