| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,040 pcs
|
2040 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Failure Rate | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Termination Style | |
| Voltage Rating |

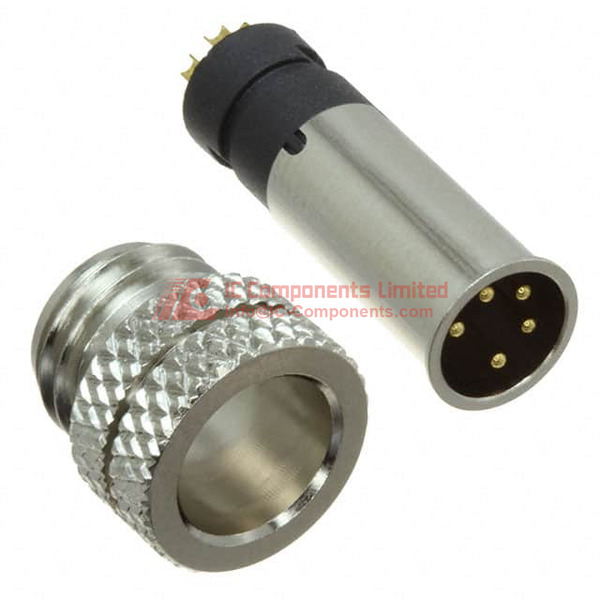

This NorComp 854A005-103RLS4 is a male receptacle connector from the VULCON™ series. It is designed with 5 positions and utilizes a solder cup termination style. The connector boasts an IP67 rating, providing dust-tight and waterproof protection.
The shell is constructed from brass with a nickel finish, and the insert is made of Polybutylene Terephthalate (PBT). This component is rated for a voltage of 30V and a current of 1.5A. It operates within a temperature range of -40°C to 85°C. The mounting type is free hanging (in-line) with a threaded fastening type.
The material has a flammability rating of UL94 V-0. This connector is suitable for various industrial applications requiring reliable and protected connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating for the 854A005-103RLS4 connector is 30V.
The 854A005-103RLS4 connector uses a solder cup termination.
The 854A005-103RLS4 connector has an IP67 ingress protection rating.
The operating temperature range for the 854A005-103RLS4 connector is -40°C to 85°C.
The 854A005-103RLS4 connector has 5 positions.
The current rating for the 854A005-103RLS4 connector is 1.5A.
