| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Centerbump Polarization | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Underplating | |
| Voltage Rating | |
| Withstanding Voltage | |
| process_rating (Nominal @ Soldering Iron) | |
| process_rating (Nominal @ Wave Solder) |

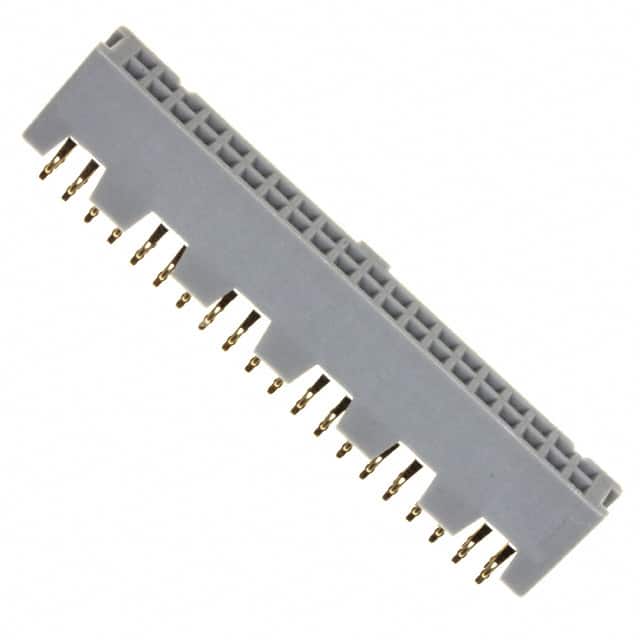

The 3M 8540-4500PL is a 40 position, 2-row polarized boardmount socket from the 8500 series. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, with through hole termination and kinked pin solder tails. The contact area is plated with 0.3µm gold over 2µm nickel underplating, ensuring reliable electrical connections. The glass filled polyester (PBT) insulation is rated UL94 V-0 and comes in gray. A centerbump polarization key ensures correct mating with low profile shrouded headers.
Electrically, the receptacle is rated for 1A current and 1000V voltage, with insulation resistance greater than 1×10^9Ω at 500VDC and withstanding voltage of 1000VRMS at sea level. The operating temperature range is -55°C to 105°C, and it can withstand wave soldering at 260°C for 10 seconds or soldering iron at 390°C for 3 seconds. The push-pull fastening type and board retention feature make it suitable for both board-to-board and cable applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.37 | $7.37 |
| 10+ | $6.78 | $6.78 |
| 20+ | $6.58 | $6.58 |
| 50+ | $6.49 | $6.49 |
| 100+ | $6.17 | $6.17 |
| 200+ | $5.82 | $5.82 |
| 500+ | $5.60 | $5.60 |
| 1,000+ | $5.40 | $5.40 |
| 2,000+ | $5.39 | $5.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
1 A.
1000 V.
Through hole with kinked pin solder termination.
-55°C to 105°C.
Gold, 0.3µm (12µin) over 2µm nickel underplating.
