| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

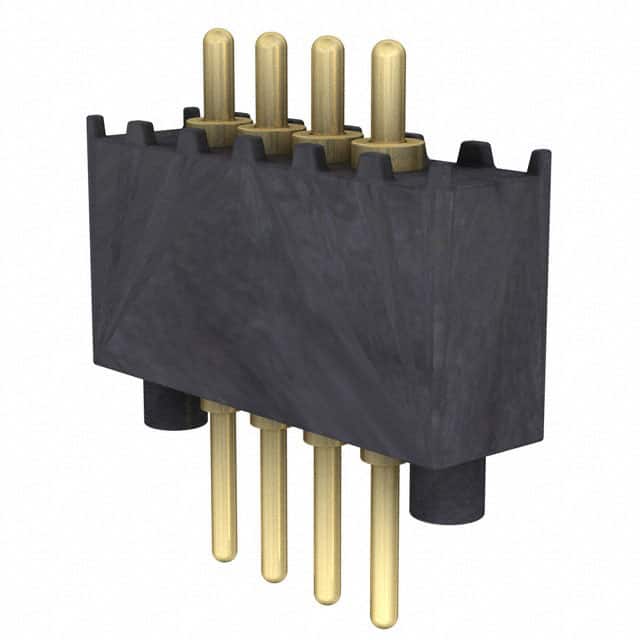

The Mill-Max 854-22-004-10-001101 is a 4 position piston connector designed for spring-loaded interconnect applications. It features a single row of contacts with a 1.27mm (0.050") pitch, making it suitable for compact PCB layouts. The connector uses through hole mounting for secure mechanical attachment and reliable solder connections.
Contacts are made of brass alloy with a gold finish of 20.0µin (0.51µm), providing excellent conductivity and corrosion resistance. The piston contact design ensures consistent mating force and electrical continuity in applications requiring repeated connection cycles.
This connector is classified as RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited floor life). It is commonly used in test sockets, programming fixtures, and board-to-board interconnect systems where reliable spring-loaded contacts are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.05 | $6.05 |
| 10+ | $5.51 | $5.51 |
| 25+ | $5.22 | $5.22 |
| 50+ | $5.10 | $5.10 |
| 100+ | $4.84 | $4.84 |
| 260+ | $4.61 | $4.61 |
| 2,535+ | $4.49 | $4.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 4 contacts arranged in a single row.
Through hole mounting.
Gold finish with a thickness of 20.0µin (0.51µm).
Brass alloy.
It is listed as RoHS3 compliant, but this information is unverified.
