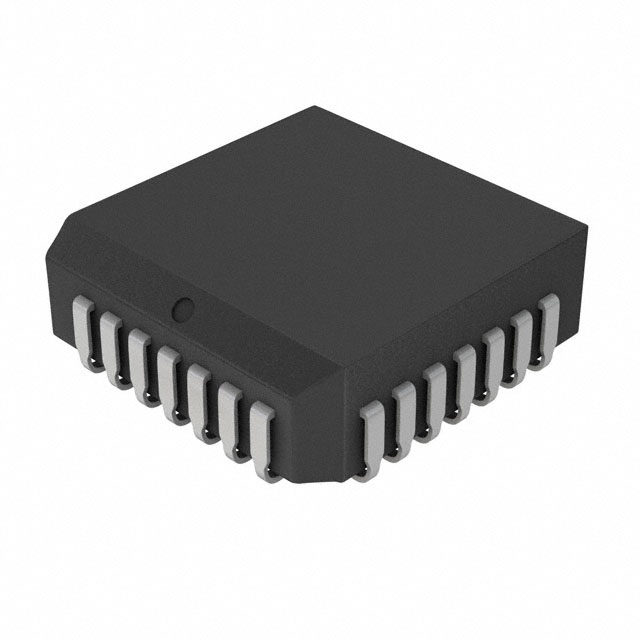

853S310CVILF IC CLK BUFFER 1:8 2GHZ 28PLCC. Fanout buffer and multiplexer with 1:8 ratio, differential inputs and outputs, surface mount.
Mfr Part #:

853S310CVILF

Available from 1 distributors
Mfr Name: Renesas
Renesas
IC CLK BUFFER 1:8 2GHZ 28PLCC. Fanout buffer and multiplexer with 1:8 ratio, differential inputs and outputs, surface mount.
✓ Total Stock: 3,305 pcs

853S310CVILF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,305 pcs
On Request
3305 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

853S310CVILF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Lead Style
Mounting Type
Number of Circuits
Operating Temperature
Output
Ratio
SVHC Present
Supplier Device Package
Termination Style
Type
Voltage
View Similar Products (0)

853S310CVILF Description

Short technical summary and product information.

The 853S310CVILF is a high-speed fanout buffer and multiplexer from Renesas. It provides a 1:8 input-to-output ratio with differential capability on both sides. The device accepts multiple input logic standards including CML, LVDS, LVPECL, and SSTL, and outputs ECL or LVPECL signals.



Operating at a maximum frequency of 2 GHz, the 853S310CVILF requires a supply voltage between 3V and 3.8V. It is designed for surface mount assembly in a 28-LCC (J-Lead) package, also known as 28-PLCC (11.51x11.51 mm). The operating temperature range spans -40°C to 85°C, suitable for industrial environments.



This component is ideal for clock distribution and signal multiplexing in high-speed digital systems. Its single circuit design with 1:8 fanout allows efficient distribution of clock signals to multiple destinations while maintaining signal integrity.

853S310CVILF Quick Information

Product Type: Fanout Buffer (Distribution), Multiplexer
Canonical Name: Renesas 853S310CVILF - 1:8 Fanout Buffer/Multiplexer, 2 GHz, 28-PLCC
Subcategory: Clock Buffers, Drivers

853S310CVILF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

853S310CVILF Features

  • 1:8 fanout buffer and multiplexer.
  • Differential inputs and outputs.
  • Supports CML, LVDS, LVPECL, SSTL inputs.
  • Maximum frequency of 2 GHz.
  • Surface mount 28-PLCC package.

853S310CVILF Applications

  • Clock distribution in high-speed digital systems.
  • Signal multiplexing for timing applications.
  • Used in networking and telecom equipment.
  • Ideal for server and data center timing.

853S310CVILF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

3V to 3.8V.

What is the package type?

28-LCC (J-Lead) also known as 28-PLCC (11.51x11.51 mm).

What is the operating temperature range?

-40°C to 85°C.

Is the device RoHS compliant?

RoHS3 Compliant (unverified).

What is the input-to-output ratio?

1:8.

What is the maximum frequency?

2 GHz.

What input logic standards are supported?

CML, LVDS, LVPECL, SSTL.
