853S024AYLFT The 853S024AYLFT is a 1:24 fanout buffer (distribution) from Renesas, supporting up to 1.5 GHz with LVPECL output. It operates from 3.135 V to 3.465 V and is housed in a 64-TQFP exposed pad package.
Mfr Part #:

853S024AYLFT

Available from 1 distributors
Mfr Name: Renesas
Renesas
The 853S024AYLFT is a 1:24 fanout buffer (distribution) from Renesas, supporting up to 1.5 GHz with LVPECL output. It operates from 3.135 V to 3.465 V and is housed in a 64-TQFP exposed pad package.
✓ Total Stock: 1,044 pcs

853S024AYLFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,044 pcs
On Request
1044 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

853S024AYLFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Input Type
Mounting Type
Number of Circuits
Operating Temperature
Output
Ratio
Supplier Device Package
Type
Voltage
View Similar Products (0)

853S024AYLFT Description

Short technical summary and product information.

The 853S024AYLFT is a high-speed 1:24 fanout buffer (distribution) IC from Renesas, designed for clock distribution in timing-sensitive digital systems. It accepts differential input signals including HCSL, LVDS, LVHSTL, LVPECL, and SSTL, and provides a single LVPECL output.



Key electrical specifications include a maximum frequency of 1.5 GHz, a supply voltage range of 3.135 V to 3.465 V, and an operating temperature range of 0 °C to 70 °C. The device features differential input and output for enhanced noise immunity.

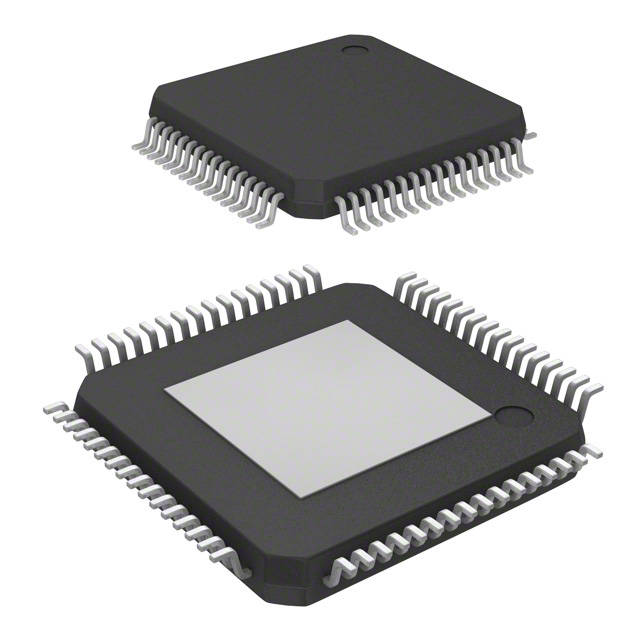

The 853S024AYLFT is surface mount and packaged in a 64-TQFP exposed pad (10x10 mm) package, suitable for automated assembly. It is RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited).

853S024AYLFT Quick Information

Product Type: Fanout Buffer (Distribution)
Canonical Name: 853S024AYLFT 1:24 Fanout Buffer (Distribution) with LVPECL Output
Subcategory: Clock Buffers, Drivers

853S024AYLFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

853S024AYLFT Features

  • 1:24 fanout buffer for clock distribution.
  • Supports up to 1.5 GHz maximum frequency.
  • Differential input and LVPECL output.
  • Operates from 3.135 V to 3.465 V supply.
  • Surface mount 64-TQFP exposed pad package.

853S024AYLFT Applications

  • Clock distribution in networking equipment.
  • High-speed timing in telecom systems.
  • Signal buffering in server applications.
  • Industrial automation timing circuits.
  • Low jitter clock fanout for digital systems.

853S024AYLFT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum frequency of the 853S024AYLFT?

The maximum frequency is 1.5 GHz.

What is the supply voltage range for the 853S024AYLFT?

The supply voltage range is 3.135 V to 3.465 V.

What package does the 853S024AYLFT use?

It uses a 64-TQFP exposed pad package (10x10 mm).

What is the operating temperature range of the 853S024AYLFT?

The operating temperature range is 0 °C to 70 °C.

Is the 853S024AYLFT RoHS compliant?

Yes, it is RoHS3 compliant.

What output type does the 853S024AYLFT provide?

The output type is LVPECL.

What input types are supported by the 853S024AYLFT?

It supports HCSL, LVDS, LVHSTL, LVPECL, and SSTL input types.
