| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
221,509 pcs
|
221509 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Voltage Supply |
The Renesas Electronics America Inc 85304AG-01LF is a high-speed clock fanout buffer and multiplexer designed for precise clock signal distribution. It features 2 inputs supporting various standards including HCSL, LVDS, LVHSTL, LVPECL, and SSTL, and provides 5 LVPECL outputs.
This device can operate at a maximum frequency of 650MHz, making it suitable for demanding high-frequency applications. The supply voltage range is from 3.135V to 3.465V, and it operates within an ambient temperature range of 0°C to 70°C.

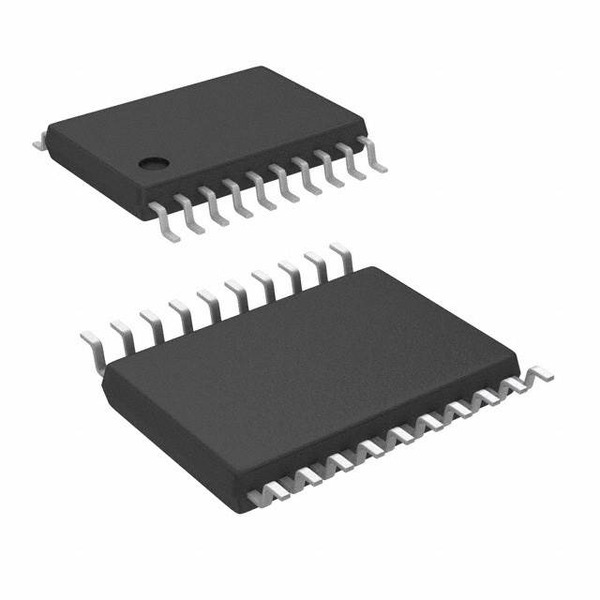

The 85304AG-01LF is packaged in a compact 20-TSSOP surface-mount form factor with a width of 4.40mm. Its design is ideal for high-performance computing systems, data centers, and networking equipment requiring low-jitter clock tree designs.
This component is RoHS3 compliant and REACH unaffected. It is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 650 MHz.
The supply voltage range is 3.135V to 3.465V.
It supports HCSL, LVDS, LVHSTL, LVPECL, and SSTL input types.
It provides five LVPECL outputs.
The operating temperature range is 0°C to 70°C.
It is supplied in a 20-TSSOP package.
Yes, it is RoHS3 compliant.
