| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
347 pcs
|
347 pcs | On Request | 1 | On Request | On Request | 2008 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

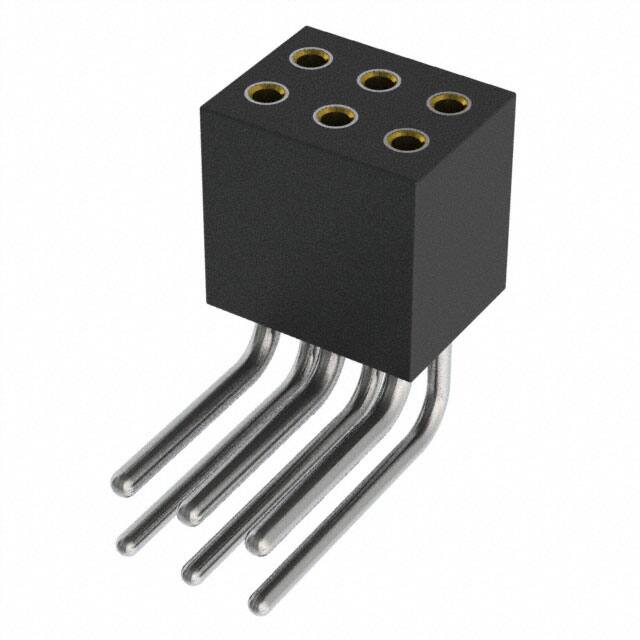

The Mill-Max 853-43-006-20-001000 is a 6 position board to board receptacle connector featuring a 1.27mm (0.050") pitch and 2 rows. It uses female socket contacts with a tin finish (30.0µin) and is designed for through hole right angle mounting with solder termination.
This connector is rated for 3A current and operates over a temperature range of -55°C to 125°C. The black insulation has a UL94 V-0 flammability rating. The push-pull fastening type and 3.43mm post length make it suitable for compact board stacking applications.
All 6 positions are loaded, and the connector is RoHS3 compliant (unverified). The 1.27mm pitch allows for high-density interconnects in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.62 | $9.62 |
| 10+ | $8.66 | $8.66 |
| 25+ | $8.16 | $8.16 |
| 50+ | $7.95 | $7.95 |
| 100+ | $7.74 | $7.74 |
| 250+ | $6.90 | $6.90 |
| 500+ | $6.48 | $6.48 |
| 1,000+ | $5.73 | $5.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 6 positions arranged in 2 rows.
The current rating is 3A.
Through hole, right angle mounting with solder termination.
-55°C to 125°C.
Tin with 30.0µin (0.76µm) thickness.
